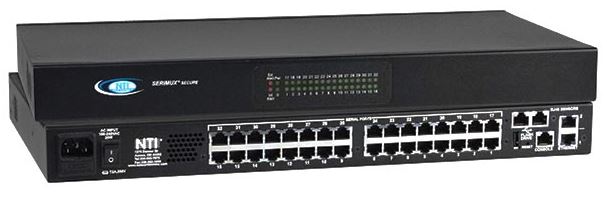

Secure 32-Port Console Serial Switch w/ 48V Power

SERIMUX-S-32-48V

$1,695.00$1,558.62
Save $136.38
FREE Shipping on orders over $100

The SERIMUX-S-32-48V Secure SSH Console Serial Switch delivers secure management of up to 32 serial devices via the internet, TCP/IP network, or dial-up modem connections. It combines the advanced security of Secure Shell v2 with unlimited access to remote network management.

  • Operates on a hardened Linux system.
  • 48V DC power.
  • Connect up to 32 devices with different baud rates, parity, and character length. Each switch also has one RJ45 connector for a local terminal.
  • Eliminates the need to connect each device to an ASCII terminal or PC.
  • Provides out-of-band access to network devices (servers, routers, network switches, and any other network devices allowing console operation using RS232).
  • Connects to console serial ports using standard CAT5/5e/6 cables and cable adapters.
  • Maximum cable length is 1000 feet (305 meters).
  • USB port provides expanded logging storage, configuration export and additional functionality.
  • High quality, rugged steel construction with durable powder coat finish.
  • Gain access to servers without interrupting service to end-users; maintain optimal up-time.
  • Monitor environmental conditions.
  • Supports two sensors, including: temperature, humidity, and water detection.
  • When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, web page, and network management (SNMP).
  • Power cycle without halting SUN host computer.
  • No inadvertent "break" signals are generated to cause unintentional rebooting of SUN computers.
  • Powerful diagnostic and event management features (data capture, notification and scripting) assist in the quick location of the source of equipment failures and minimize downtime.
  • Enhanced security features to protect the system - Secure Shell (SSH v2), individual port authentication, HTTPS.
  • Switching is simplified with programmable device names and menu-driven device selection.
  • All configuration parameters are stored in non-volatile memory.
  • Configuration parameters can be imported from USB Flash drive.
  • Firmware upgradeable "in-field" through console port, Ethernet, or an attached USB Flash drive.
  • 1U case is standard. Includes rack mounting kit.

Product Specifications

CompatibilitySupports most devices with an RS232 serial port. Supports VT Terminals
Serial Interface32 RJ45 EIA-232 serial port connectors
One RJ45 EIA-232 console port connector
Each individual serial port is fully configurable-
All industry-standard baud rates ranging from 50 up to 115.2kbps
RTS/CTS, Xon/Xoff or both handshaking schemes
Variable character widths- 5, 6, 7, or 8 bits
Stop bits - 1 or 2, as well as Parity- Odd, Even and None
Flow Control:
Hardware RTS/CTS
Software XON/XOFF
Signals: RS232 CTS, DSR, RXD, GND, DCD, TXD, DTR, RTS
Modem control: DTR/DSR and RTS/CTS
Data transfer rate: up to 115.2K baud between two ports
Two ports can be at different baud rates
Network InterfaceTwo 10/100 Base-T Ethernet ports with RJ45 Ethernet connector
Supports both static and dynamic IP addresses
Power48V DC Power
RJ45 Sensor PortsTwo RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, and liquid detection sensors.
Internal SensorsTemperature:
Applications from 32 to 104°F (0 to 40°C).
Accurate to within ±1.35°F (±0.75°C).
Fan: Ability to monitor internal fan speed
Memory32 MB Flash memory
Female USB 2.0 Type A connector for storage devices
Logging and BufferingSystem log, event-log of user activity and on-line data buffering
Data-logging with date and time-stamp, locally
The log can be downloaded as a tab-delimited plain text file and/or sent to an external syslog server.
Dimensions32-port switch WxDxH (in):
17.40x10.00x1.75 (without supplied rack ears kit)
19x10.00x1.75 (with supplied rack ears kit)
Regulatory ApprovalsCE, RoHS
MTBF31,942 Hours
EnviromentalOperating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -20 to 140°F (-30 to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH
AdaptersFour cable adapters are included with the SERIMUX
Male DB-25F to female RJ45
Female DB-9F to female RJ45
Female DB-25M to female RJ45
Male DB-25M to female RJ45
ProtocolsSSH V2, Telnet, IPV4, IPV6, TCP/IP, TFTP, DHCP, ICMP, UDP, ARP
HTTP, HTTPS, SMTP, SNMP V1/V2c, Syslog, SNTP, IPMI v2, RMCP
Alerts are sent using email, and/or SNMP traps when any monitored environmental condition exceeds a user-specified range.
WarrantyTwo Years
