Smart-AVI 1-port DVI-D, USB 2.0, Audio and RS232 Fiber Extender

SFX-M-S

$3,199.00

Discontinued
For upgrade or replacement options: Contact Us

The Smart-AVI SFX-M-S is a perfect solution for extending DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away. The SFX-M-S supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers. The Smart-AVI SFX-M-S is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The SFX-M-S is also very secure because it's fiber optic signals cannot be easily tapped.

Smart-AVI SFX Features and Benefits:

  • Top Signal Quality at Maximum Extension
  • Over Multimode Fiber (1,500 ft.) Plug Type LC
  • DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
  • Automatic Learning DDC for Mac/PC
  • Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
  • Supports all USB device types transparently (no emulation)from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers and more
  • Integrated Four-Port Hub in the receiver
  • Compatible with all operating systems
  • Extends Stereo Audio
  • Extends RS-232
  • Plug and play

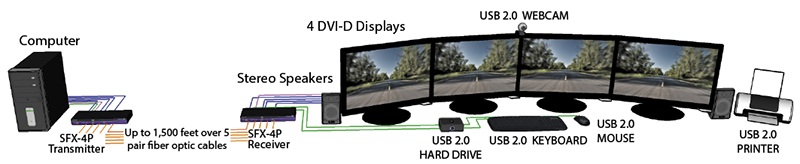

SmartAVI SFX-M-S Diagram
Smart-AVI DVI-D USB Audio and RS232 Fiber Extender Diagram
(SFX-4P depicted here)

Smart-AVI SFX Applications

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • KVM Extension where Exceptional Quality of Signal is Crucial
  • Medical(Remote Operation Away from Sensitive/Magnetic Equipment)
  • Recording(for large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

Smart-AVI SFX Specifications:

Mechanical
Width8.5 in.
Height1.85 in.
Depth5.375 in.
Weight1.5 lbs.
Environment
Operating Temperature0-55 °C (32-131°F)
Storage Temperature-20 - 85 °C (-4 - 185 °F)
HumidityUp to 95%
Video
ResolutionUp to 1920 x 1200 @ 60 Hz
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input/Output Interface1 x DVI-D 29-pin
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
Audio
Signal TypeDB9
Bandwidth15MHz
Impedance10K Ohm
Connector3.5mm Stereo Mini
USB
Signal TypeEHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Input Interface (TX)1 x USB Type B
Output Interface (RX)4 x USB Type A
RS232
Input/Output Interface (TX/RX)DB9 Female
SpeedUp to 115 Kbps
Fiber TypeDuplex, multi mode
Connector TypeDuplex LC
Wavelength1210 nm/1550 nm (Dual wavelength)
Data Rate2x 2.5 Gbps (2.5 Gbps per wavelength)
Transmission Power-5 dB Min.
Receiver Sensitivity-21 dB Max.
Distance500 m Max.
Other Interfaces
DDC Signal5 Volts, TTL
TDMS Signal1.2 Volts, TTL
PowerInternal 100-240 VAC/5VDC2A, 10 W
UPC / EAN Barcode icon
UPC 813280019477
EAN 0813280019477
Question: Please advise lead time of this product. Is it in stock?
Answer: Thank you for your inquiry,

We have all the parts for the SmartAVI SFX-M-S system in-stock but there is currently a 3-day lead time for assembly to ship.

For the quickest and most up to date stock count, please feel free contact your KVM Switches Online sales representative.
