HDMI EDID Emulator
SM-EHD
Save $21.86
Video: HDMI Video Input/Output

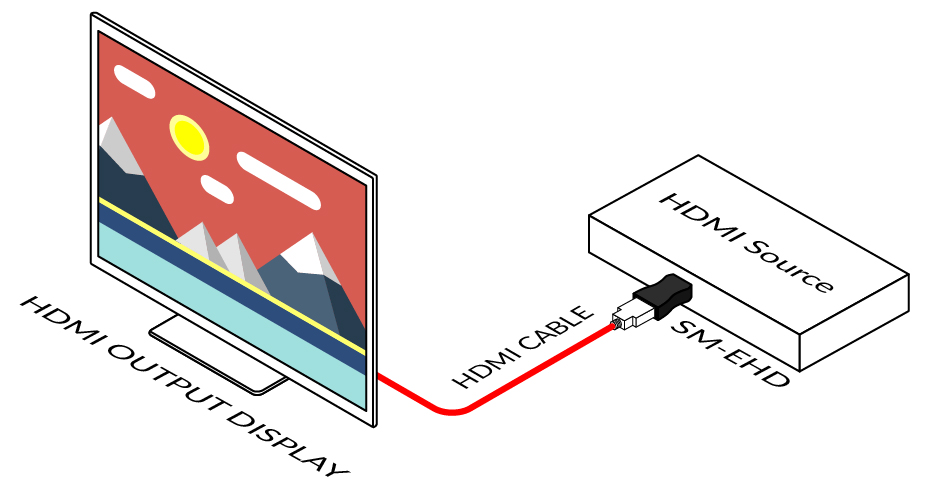

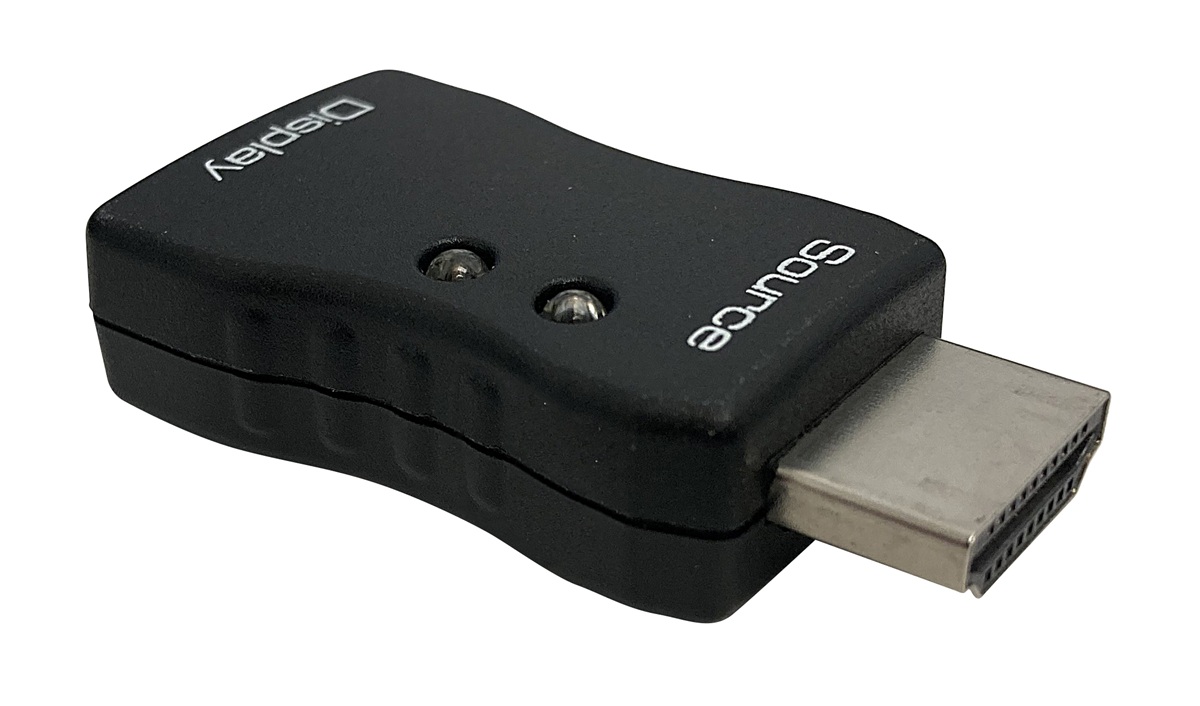

The SmartAVI SM-EHD is an HDMI EDID emulator that captures and stores a display's EDID to ensure the HDMI source always sees the correct capabilities. It supports HDMI 1.3/1.4/2.0, up to 3840×2160 @ 30 Hz, and is powered directly from the HDMI source without needing a separate power supply.
Features of the SM-EHD HDMI EDID Emulator
- Designed to emulate and store the EDID of a video display
- HDMI 1.3 / 1.4 / 2.0 Compliant
- Supports HDTV resolution up to 4K x 2K @ 60Hz
- Supports Learning and Emulation mode
- HDMI (3D, Deep Color, CEC), HDCP compatible
- Supports Dolby, True HD and DTS HD Master Audio
- Built-in LEDs indicator to easily identify the EDID mode
- Include default resolution at 1080p
- Powered from HDMI source device without self-power
SmartAVI SM-EHD Resources:
SmartAVI SM-EHD Specifications:
| Video | |
| Format | HDMI 2.0 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface | HDMI (male) |
| Output Interface | HDMI (female) |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| OTHER | |
| Dimensions | 1.5" x .75" x .33" |
| Weight | 0.7 oz |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Humidity | 20% to 80% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Compliance | UL, CE, RoHS2 (CE) |
| Support Warranty | 1-year |
UPC 813280025898
EAN 0813280025898
