SmartAVI HDMV16X

SM-HDMV16X-S

$13,999.00$10,908.31
Save $3,090.69
FREE Shipping on orders over $100
smartavi_madeinusa

The HDMV-16X allows users to view up to sixteen different HD digital video sources on one display and can be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras and computers. It is the perfect solution in situations where a user needs to monitor several sources at the same time.

Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, full-screen mode, and PiP (Picture in Picture) mode.

product

Feature

  • View up to sixteen sources on a single monitor at the press of a button
  • On-Screen Display (OSD) makes setup and switching easy
  • Display each computer with crisp high-resolution video
  • Supports DVI-D input resolutions up to 1900 x 1200
  • Supports 1080p HDMI output (1920 x 1080)
  • Delivers uncompressed digital video with zero signal loss
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Outputs HDMI up to 40 feet
  • Change views with front panel switching, keyboard hotkeys and RS-232
  • Quad-mode splits the screen to show four sources on one screen
  • Dual-mode splits the screen to show two sources on one screen
  • PiP-mode displays one device in full screen with three thumbnail views
  • 16-mode displays on all sixteen inputs on one screen

Applications

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers for Technical Support
  • Industrial (Long-Range Workstation Isolation)
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
  • Recording (for Large Studios where Editing/Mixing Stations are compact and/or Require Complete Silence)

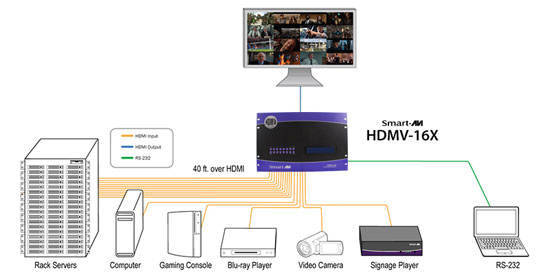

diagram

SmartAVI HDMV-16X Specifications

Mechanical
Height 5.25 in. (13.3 cm)
Width 19 in. (48.26 cm.)
Depth 7 in. (17.28 cm.)
Video BandwidthSingle-link 340 MHz [10.2 bps]
Resolution HDTV480i, 480p, 720i, 720p, 1080i, 1080p
Input Video Signal1.2 volts
Input DDC Signal5 volts
FormatHDMI 1.4
ConnectorType A [19-pin female]
Control Display4x40 LCD
Power RequirementsInternal 100-240 VAC
Weight 15 lbs.
UPC / EAN Barcode icon
UPC 813280023252
EAN 0813280023252
