9-Port Full HD KVM/Multiviewer to a Single Monitor

SM-HDMV9X-PLUS

$12,999.00$10,129.09
Save $2,869.91
FREE Shipping on orders over $100

The HDMV-9X Plus is an HD Multiviewer that allows users to view up to nine different HD digital video sources on one display device simultaneously. The HDMV-9X Plus also supports USB KVM functionality, allowing the user to access keyboard, video and mouse operations on up to nine computers.

Connections to video sources are managed via HDMI, with advanced viewing options such as dual-mode, quad-mode, full-mode and 9-mode. This device enables simplified management and control of multiple video sources and computers by accessing them from a single workstation and one display.

  • Control KVM on nine connected computers
  • View up to nine sources on a single monitor at the press of a button
  • On-Screen Display (OSD) makes setup and switching easy
  • Display each computer with crisp high-resolution video
  • Supports 1080p HDMI output (1920 x 1080)
  • Supports DVI-D input resolutions up to 1900 x 1200 with HDMI to DVI-D adaptor
  • Full keyboard and mouse emulation
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Outputs HDMI up to 20 feet
  • Change views with front panel switching, hot keys and RS-232, with optional Ethernet control
  • Quad-mode splits the screen to show four sources on one screen
  • Dual-mode splits the screen to show two sources on one screen
  • 9-mode displays one all nine inputs on one screen

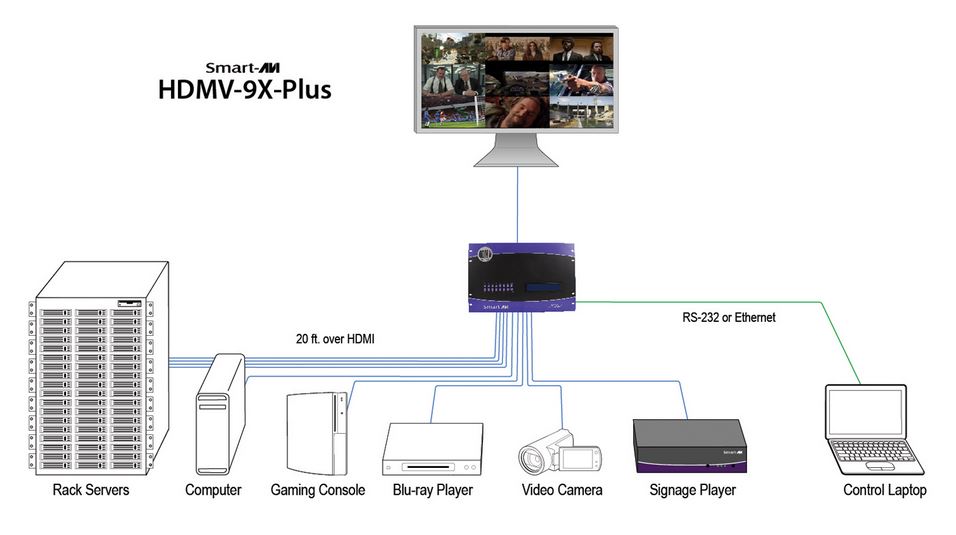

Product Diagram

Mechanical
Width17.5 in (444.5 mm.)
Height12 in. (304.8 mm.)
Depth12 in. (304.8 mm.)
Weight22 lbs (9.98 kg.)
Video
Video BandwidthSingle-link 340MHz [10.2Gbps]
Resolution HDTV480i,480p,720i,720p,1080i,1080p
PC Resolution800 x 600 up to 1920 x 1200
Input Video Signal1.2 volts
Input DDC Signal5 volts
Single Link Range1080p
FormatHDMI 1.4
DVI ComplianceSingle-link DVI-D 2.0 (with adaptor)
HDCP Compliance1.0/2.0
Input Interface(9) HDMI
Output InterfaceHDMI
ConnectorType A [19-pin female]
Control
Front PanelTact Switches
RS-232DB9 (female)
USB
InputUSB 2.0, 1.1, and 1.0
Input Interface(9) USB Type B
KeyboardUSB 1.0 (Type A)
MouseUSB 1.0 (Type A)
Power
RequirementsInternal 100-240 VAC
ApprovalsUL, CE, CSA, CEC, RoHS
UPC / EAN Barcode icon
UPC 813280023269
EAN 0813280023269
