SmartAVI HDMV-9X

SM-HDMV9X-S

$11,999.00$9,349.87
Save $2,649.13
FREE Shipping on orders over $100
smartavi_madeinusa

The HDMV-9X is a member of SmartAVI's HD Multiviewer series of products that allows users to view up to nine different HD digital video sources on one display device simultaneously. It can also be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras and computers. It is the perfect solution in situations where a user needs to monitor several sources at the same time.

Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, 9-mode, full-screen mode, and PiP (Picture in Picture) mode.

Use this device to simplify the management of multiple video sources by accessing them from a single set of controls on one display.

Features

  • View up to nine sources on a single monitor at the press of a button
  • On-Screen Display (OSD) makes setup and switching easy
  • Display each computer with crisp high-resolution video
  • Supports DVI-D input resolutions up to 1900 x 1200
  • Supports 1080p HDMI output (1920 x 1080)
  • Delivers uncompressed digital video with zero signal loss
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Outputs HDMI up to 40 feet
  • Change views with front panel switching, keyboard hotkeys and RS-232
  • Quad-mode splits the screen to show four sources on one screen
  • Dual-mode splits the screen to show two sources on one screen
  • PiP-mode displays one device in full screen with three thumbnail views
  • 9-mode displays one all nine inputs on one screen

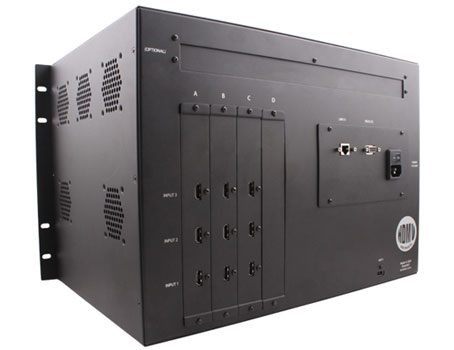

product back

Applications

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers for Technical Support
  • Industrial (Long-Range Workstation Isolation)
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
  • Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

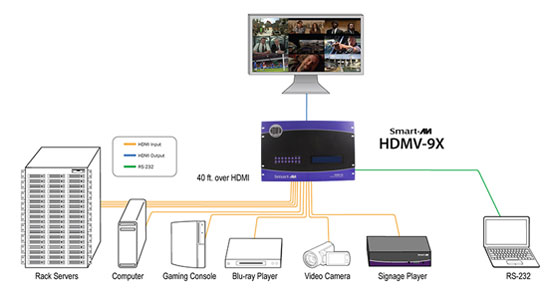

diagram

SmartAVI HDMV-9X Specifications

Mechanical
Height 5.25 in. (13.3 cm)
Width 19 in. (48.26 cm.)
Depth 7 in. (17.28 cm.)
Video BandwidthSingle-link 340 MHz [10.2 Gbps]
Resolution HDTV480i, 480p, 720i, 720p, 1080i, 1080p
PC Resolution800 x 600 up to 1920 X 1200
Input Video Signal1.2 volts
Input DDC Signal 5 volts
ConnectorType A [19-pin female]
Control Display4x40 LCD
Power RequirementsInternal 100-240 VAC
Weight15 lbs.
