SmartAVI XPANDER Graphics Card



For upgrade or replacement options: Contact Us

The SmartAVI XPANDER XP4-RD graphics card provides high-end multi-screen capabilities for complex data/video walls or multi-screen desktop applications. This digital signage graphics card supports 4 screens using multiple XP4 cards, making it possible to spread the Windows desktop across 32 screens. The construction of the multi-screen display can be arranged in any rectangular format with optional video overlay.

Note: (4) 3' VGA female to RJ45 cables are included.

SmartAVI XPANDER Backside
SmartAVI XPANDER Backside

SmartAVI XPANDER Features:
  • Four port graphics adapter.
  • Two Radeon 7000 graphics processors, each with 16MB of memory (total 64MB).
  • Four XVGA outputs, each supporting up to 1900 x 1200 (analog).
  • Eight XP4-Radeon cards can be used to support a maximum of 32 screens.


Supported File Formats:
  • Flash (.swf), htm, html
  • Adobe: Acrobat (.pdf)
  • Movies (avi, mpg, wmv)
  • Images (jpegs, bitmaps, gifs, animated gifs, png)
  • Live TV via http
  • Streaming video
  • Digital Audio Files
  • News feeds (RSS)
  • PowerPoint

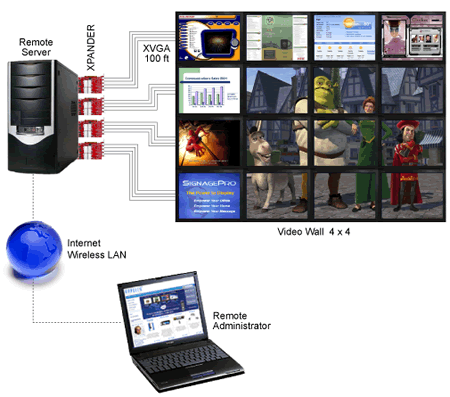

SmartAVI XPANDER Application Diagram
SmartAVI XPANDER Application Diagram

XPANDER Specifications:

Interface Type PCI
Compatibility PC
Video RAM Installed 32 MB per channel
Interface VGA via HD15 female via cable
Video Resolution (External) 2048 x 1536:60 MHz
Color Resolution (External) 24-bit (16.7 million colors)
Display Graphics VGA (640x480), SVGA (800x600), XGA (1024x768),
QXGA (2048x1536), SXGA (1280x1024), UXGA
(1600x1200), SXGAW (1600x1024)
Max Resolution 2048 x 1536 @ 85Hz (Analog)

XPANDER Server Specifications:

Processor IntelR PentiumR Dual Core with up to 2MB L2 cache,
IntelIR PentiumR 4 HT
Operating System WindowsR XP Professional, Windows 2003 Server
Memory 1GB for main server
Networking 10/100/1G
Storage Serial ATA, Up to 600GB2 max internal storage
