SmartAVI SuperMatrix 8x16

SMX-AV0816S

$7,999.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

SuperMatrix SMX-AV0808S combines all the functions of and audio matrix, video matrix, IR matrix and a full rs-232 matrix into one cost effective compact design. This gives you absolute control over all of your audio/video and display devices over distances up to 1,699 feet.

Features

  • Switches 8 inputs to any 16 outputs for unmatched design flexibility
  • Integrated RS-232 and Infrared matrix offers unparalleled control
  • Switch signals from devices located up to 1,000 feet apart
  • Sends crystal clear stereo audio
  • Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable
  • Compatible with Video Composite, S-Video, Component and XVGA interface
  • Increases productivity by providing access to 8 computers from 8 workstations
  • Can be controlled via software interface, remote control, Internet or RS/232
  • Full RS-232 Matrix
  • One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can;
  • Remotely power on and off all of the connected display devices
  • Send commands such as video schedules or input source
  • Enable touch-screen displays to send and receive data
  • Interrupt displays with Alerts and urgent messages
  • Another key feature is its capacity to support multiple control interfaces;
  • Control via RS-232 using SmartControl; our Windows based Software included with the system.

Application

  • Video Walls
  • Audio Visual Presentations
  • Digital Signage
  • Shopping Centers
  • Airports
  • Security
  • Dealer Rooms
  • Point of Sale
  • Control Room
  • Access the matrix from anywhere in the world using our http interface

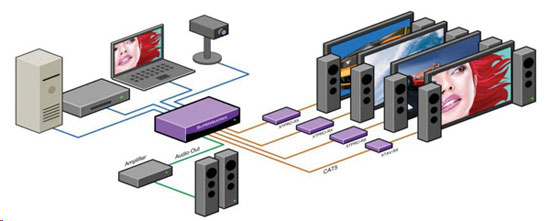

smx diagram

Mechanical
Height 3.46 in. (8.78 cm)
Width 19 in. (48.26 cm.)
Depth 17 in. (43.18 cm.)
Weight9 lbs
Bandwidth400 MHz
Connector8 X HD 16 socket female
FormatVGA / SVGA / XGA /RGBHV / RGsB / YC / YUV / RGBS
Signal15 KHz 0 dB unblanaced 100 Ohms impedance
Supported Resolutions HD720p, 1080i, 1080p
Display  ResolutionsUp to 1920x1200
UPC / EAN Barcode icon
UPC 813280019842
EAN 0813280019842
