SmartAVI Composite Video/Audio/IR over CAT5 16x4 Matrix Switch



For upgrade or replacement options: Contact Us

The SmartAVI SmartNet-V SNV16X04 is a Composite Video/Audio/IR over CAT5 16x04 matrix video switch with RS422 control.  The SmartAVI SmartNet-V series of products provide a unique combination of high quality video and stereo audio matrix, remote infrared control with pass-through and signal distribution via CAT5 cable. The SNV16X04 video switch comes with a small discrete receiver unit providing a high quality signal conversion from the CAT5 cable to the television, computer or other display device.

The SNV16X04 allows the extension of infrared control signals via a single category 5 twisted pair cable. Using a unique method of transparent data transfer, the system allows a device (e.g. set-top box) to be situated up to 1000ft (300m) from the controller (e.g. television).  Fully compliant with standard modulated IR and the latest IRDA, the extender will provide a transparent path for all protocols and data transfers.

This 16x04 video switch contains a high quality routing matrix for composite video and stereo audio. Gold RCA jacks sockets on the rear of the unit connect the input signals to the matrix. Color coded jacks are used for ease of identification. Both audio and video inputs are high impedance to allow for looping inputs. This enables multiple units to be cascaded together increasing the number of users to the system. Each model in the series has looping inputs giving a convenient method of upgrading the system on site. An integral on screen display (OSD) for each output keeps the user informed of channel identification and system configuration.
Note: Each user requires a receiver unit complete with IR 'eye' and handset.

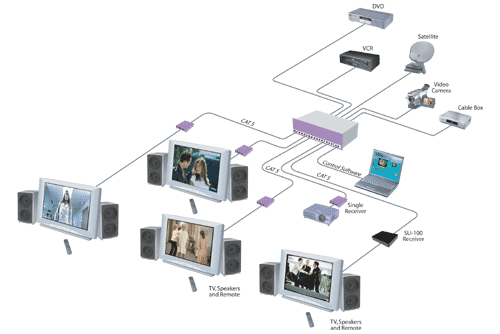

SmartAVI SmartNetV Video Switch Diagram
SmartAVI SmartNetV Video Switch Diagram

SmartAVI SNV16X04 Features:

  • TV distribution via CAT5 structured cabling with full interactivity
  • High quality video and stereo audio routing
  • Signal distribution over CAT5 structured cabling
  • Full interactivity via infrared control
  • Fully compatible with all standards of modulated IR and IRDA
  • Automatic cable compensation
  • On-screen display
  • Distributes signals over 300m
  • Expandable on-site
  • Remote powering of receiver

SmartAVI SNV16X04 Package Includes:

  • SNV16X04 video switch
  • SRS422 RS232 adapter
  • Smart CONTROL software (SM-CSW)

SmartAVI SNV16X04 Specifications:

Height 5.2 in. (133 mm.)
Width 19 in. (482 mm.)
Depth 17 in. (450 mm.)
Weight 22 lbs. (10 kg.)
Voltage 90-230V
Connector IEC
Fuse Rating 1A A/S
Frequency 50/60 Hz
Cat 5 Signals
Pair 1 Video balanced 1 V pk-pk
Pair 2 Audio L balanced 0dB
Pair 3 Audio R balanced 0dB
Pair 4 12V DC power + IR balanced signals
Bandwidth 15MHz
Input Signal Level 1Volt pk-pk into 75R
Output Impedance 100 Ohms
Input Impedance 100k Ohms
Connector RCA jack socket
Bandwidth 20KHz
Signal level 0dB
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Input Connector RCA jack socket
Looping Connector Subminiature dB25 socket
IR Control
Type Open collector to 12V
Multi-output connector Subminiature dB37 socket
Multi-input connector Subminiature dB37 plug
UPC / EAN Barcode icon
UPC 813280023436
EAN 0813280023436
Question: what is electrical line
Answer: The power cord that comes with the unit is the CC-PWR06-Us or CCPWR06US.
Power statistics reported by SmartAVI -
Voltage: 90-230 V
Connector: IEC
Fuse Ratting 1A A/s
Frequency 50/60 Hz
