SmartAVI UXGA/AUDIO/IR over CAT5 16x16 Matrix Switch

SNX16X16S

$9,500.00

Discontinued
Recommended replacement: SmartAVI AVRouter 16x16 AS
Alternative options: Contact Us

The SmartAVI SmartNet-X SNX16X16 routes up to 16 UXGA and Stereo Audio Sources to 64 Remote Monitors and Speakers located at up to 1,000ft (300m) and connected with CAT5 cabling.  The SNX16X16 offers high-quality switching matrix for video and stereo audio type signals. All signal formats are catered for including VGA, SVGA, XGA and UXGA. Standard VGA connectors (HD15 sockets) are used on the rear for ease of installation for video connectivity and RCAs for computer audio.  The units contain a very high bandwidth (400MHz) routing matrix for the Red, Green and Blue video channels and separate switching layers for stereo audio. The color signals and are then balanced internally and combined with the audio signals. This combined signal is then driven out through standard RJ45s on the front panel.

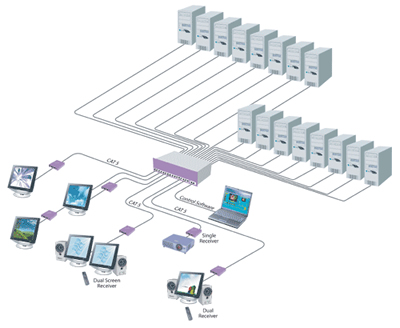

SmartAVI SmartNET 16x16 Video Switch Diagram
SmartAVI SmartNET 16x16 Video Switch Diagram

SmartAVI SNX16X16 Features:

  • High quality audio & video switching
  • High resolution up to 1600 x 1200
  • InfraRed and RS422 control
  • PC Windows software control
  • Integral UTP distribution
  • Cable compensation up to 300m
  • Compact metal housing for receivers
  • Can be mixed with other video signal (RGB, YUV, RGBS)

SmartAVI SNX16X16 Package Includes:

  • SNX16X16 video switch
  • SRS422 RS232 adapter
  • SCONTROL software

SmartAVI SNX16X16 Specifications:

Mechanical
Height 3.5 in. (88.9 mm.)
Width 19 in. (482 mm.)
Depth 17 in. (450 mm.)
Weight 20 lbs. (9 kg.)
Rack Spaces 2U
Video
Bandwidth 400MHz
Input Signal Level 1Volt pk-pk into 75R
Output Impedance 100 Ohms
Input Impedance 75R Ohms
Connector HD15 socket
Format VGA/SVGA/XGA/RGBHV/
RGsB/CVBS/YC/YUV/RGBS
Syncs TTL5VDC
Audio
Signal 15KHz 0dB unbalanced 100ohms impedance
Connector RCA or 3.5mm Stereo Jack
Power
Voltage 90-230V IEC 1A A/S 50/60 Hz
Control
IR Individual Control
RS422 Dual RJ45 Sockets
