Avocent 4-Port 208 VAC 15 Amp Vertical Power Control Device

SPC420V-2

$495.00

Discontinued
Recommended replacement: Remote Reboot
Alternative options: Contact Us

The Avocent  (SPC420V-2) 4-port power control devices from Avocent provide you with a field-proven method to securely monitor and manage power to your business-critical servers and other data center network devices.

Avocent  (SPC420V-2) 4-port power control device Features and Benefits

  • The DSView 3 management software interface lets you easily associate server names with actual power outlet ports on the SPC power control device. DSView 3 software also allows grouping of dual-server power supplies as well as separating the power supplies on different power sources. This gives you true redundancy and control of dual-powered servers.
    Note: DSView 3 software is sold separately.
  • Intelligent Power Management. Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
  • Integrated Power Management. Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
  • Higher Amperage. The SPC 208V @ 20 Amp version doubles the power load delivered to the rack without increasing electrical infrastructure
  • Ease of Use. Available in horizontal and vertical mountable 4 outlet models. (Also available in 8 and 16-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
  • On / Off Power Indicators. DSView 3 software lets you easily view the SPC devices power outlet on / off status without entering the server room / data center
  • Power-up Sequencing. Avoids branch circuit overload due to inrush current on powering-up the SPC appliance Naming Associations. Users can create an association between a server name and specific SPC outlet port(s)
  • Redundant Power Supply Configurations. Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
  • Security. Port specific and command specific access control
  • Energy Efficient. Power-on sequencing eliminates inrush current overload, which lets you maximize the number of devices on a single circuit
  • Click and Connect Access. When used with the Avocent DSView 3 software interface, the SPC device lets you access power to virtually any connected data center device
  • Local and Remote Power Load Measurement. Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit

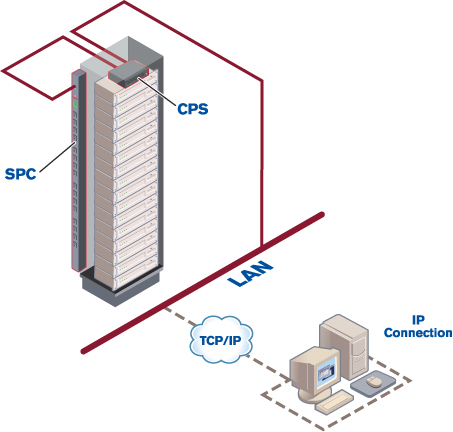

Avocent'sPC420V-1 Diagram
Avocent  (SPC420V-2) 4-port power control device Function Diagram

Avocent  (SPC420V-2) 4-port power control device Specifications:

Mechanical
Height 17.25 in (43.81 cm)
Width 2.4 in. (6.09 cm)
Depth 1.75 in. (4.45 cm)
Weight 4 lbs. (1.81kg)
Environmental
Operating Temperature 5F (-15C) to 131F (55C)
Humidity 10% to 90% non condensing
Storage Temperature 40F (-40C) to 185F (85C)
Power
Operating Voltage 100-120V or 208-240V
Power Frequency 50/60 Hz
Power Outlets NEMA 5-20R, 100-120V
IEC 60320/C13, 208-240V
Input 15 Amp versions (maybe de-rated to 13 Amp depending upon local safety agencies)
Standards
Approved Agency US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI)
