Avocent 8 Port Model, 30 AMP, 208 VAC, Horizontal 1U, Twist Lock Plug



Recommended replacement: Remote Reboot
Alternative options: Contact Us

The Avocent (SPC820H3-2T) 8-port  power control devices from Avocent provide you with a field-proven method to securely monitor and manage power to your business-critical servers and other data center network devices.

Avocent (SPC820H3-2T) 8-port  power control device Features and Benefits

  • The DSView 3 management software interface lets you easily associate server names with actual power outlet ports on the SPC power control device. DSView 3 software also allows grouping of dual-server power supplies as well as separating the power supplies on different power sources. This gives you true redundancy and control of dual-powered servers. Note: DSView 3 software is sold separately.
  • Intelligent Power Management. Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
  • Integrated Power Management. Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
  • Higher Amperage. The SPC 208V @ 30 Amp version doubles the power load delivered to the rack without increasing electrical infrastructure
  • Ease of Use. Available in horizontal and vertical mountable 8 outlet models. (Also available in 4 and 16-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
  • On / Off Power Indicators. DSView 3 software lets you easily view the SPC devices power outlet on / off status without entering the server room / data center
  • Power-up Sequencing. Avoids branch circuit overload due to inrush current on powering-up the SPC appliance
  • Naming Associations. Users can create an association between a server name and specific SPC outlet port(s)
  • Redundant Power Supply Configurations. Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
  • Power Monitoring. Dynamically measures and reports total input current load and indicates on / off state for every port
  • Security. Port specific and command specific access control
  • Energy Efficient. Power-on sequencing eliminates inrush current overload, which lets you maximize the number of devices on a single circuit
  • Click and Connect Access. When used with the Avocent DSView 3 software interface, the SPC device lets you access power to virtually any connected data center device
  • Local and Remote Power Load Measurement. Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit

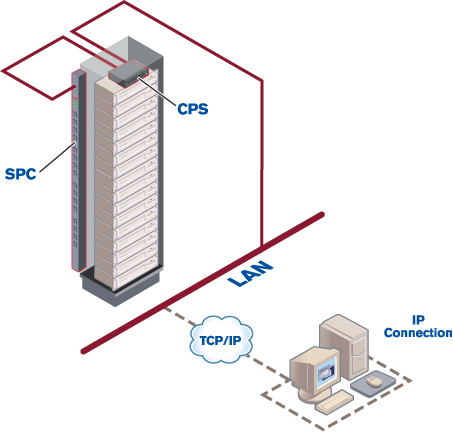

SPC820H3-2T Function Diagram
Avocent (SPC820H3-2T) 8-port  power control device Function Diagram

Avocent (SPC820H3-2T) 8-port  power control device Specifications

  Vertical Horizontal 2U
Height 41 in (104.14 cm) 1.75 in. (4.45 cm)
Width 2.40 in. (6.09 cm) 17 in (43.18 cm)
Depth 1.75 in. (4.45 cm) 8 in (20.32 cm)
Weight 9 lbs. (4.1kg) 9 lbs. (4.1kg)
Operating Temperature 5F (-15C) to 131F (55C) 5F (-15C) to 131F (55C)
Humidity 10% to 90% non condensing 10% to 90% non condensing
Storage Temperature 40F (-40C) to 185F (85C) 40F (-40C) to 185F (85C)
Operating Voltage 100-120V or 208-240V 100-120V or 208-240V
Power Frequency 50/60 Hz 50/60 Hz
Input 20 & 30 Amp versions (maybe de-rated to 16 & 24 Amp depending upon local safety agencies 20 & 30 Amp versions (maybe de-rated to 16 & 24 Amp depending upon local safety agencies
Power Outlet NEMA 5-20R, 100-120V
IEC 60320/C13, 208-240V
NEMA 5-20R, 100-120V
IIEC 60320/C13, 208-240V
Approved Agency US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI) US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI)
