Avocent 8 Port Vertical 208V, 30A w/Nema L6-30P Plug & IEC C-13



Recommended replacement: Remote Reboot
Alternative options: Contact Us

The Avocent (SPC820V3-2T) 8-port  power control devices from Avocent provide you with a field-proven method to securely monitor and manage power to your business-critical servers and other data center network devices.

Avocent (SPC820V3-2T) 8-port Power Control Device Features and Benefits

  • The DSView 3 management software interface lets you easily associate server names with actual power outlet ports on the SPC power control device. DSView 3 software also allows grouping of dual-server power supplies as well as separating the power supplies on different power sources. This gives you true redundancy and control of dual-powered servers. Note: DSView 3 software is sold separately.
  • Intelligent Power Management. Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
  • Integrated Power Management. Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
  • Higher Amperage. The SPC 208V @ 30 Amp version doubles the power load delivered to the rack without increasing electrical infrastructure
  • Ease of Use. Available in horizontal and vertical mountable 8 outlet models. (Also available in 4 and 16-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
  • On / Off Power Indicators. DSView 3 software lets you easily view the SPC devices power outlet on / off status without entering the server room / data center
  • Power-up Sequencing. Avoids branch circuit overload due to inrush current on powering-up the SPC appliance
  • Naming Associations. Users can create an association between a server name and specific SPC outlet port(s)
  • Redundant Power Supply Configurations. Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
  • Power Monitoring. Dynamically measures and reports total input current load and indicates on / off state for every port
  • Security. Port specific and command specific access control
  • Energy Efficient. Power-on sequencing eliminates inrush current overload, which lets you maximize the number of devices on a single circuit
  • Click and Connect Access. When used with the Avocent DSView 3 software interface, the SPC device lets you access power to virtually any connected data center device
  • Local and Remote Power Load Measurement. Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit

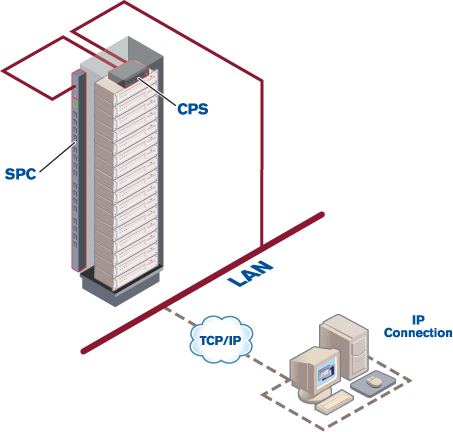

SPC Function Diagram
Avocent 8-Port Power Control Device (SPC820V3-2T) Function Diagram

Avocent 8-Port Power Control Device (SPC820V3-2T) Specifications:

  Vertical Horizontal 2U
Height 41 in (104.14 cm) 1.75 in. (4.45 cm)
Width 2.40 in. (6.09 cm) 17 in (43.18 cm)
Depth 1.75 in. (4.45 cm) 8 in (20.32 cm)
Weight 9 lbs. (4.1kg) 9 lbs. (4.1kg)
Operating Temperature 5F (-15C) to 131F (55C) 5F (-15C) to 131F (55C)
Humidity 10% to 90% non condensing 10% to 90% non condensing
Storage Temperature 40F (-40C) to 185F (85C) 40F (-40C) to 185F (85C)
Operating Voltage 100-120V or 208-240V 100-120V or 208-240V
Power Frequency 50/60 Hz 50/60 Hz
Input 20 & 30 Amp versions (maybe de-rated to 16 & 24 Amp depending upon local safety agencies 20 & 30 Amp versions (maybe de-rated to 16 & 24 Amp depending upon local safety agencies
Power Outlet NEMA 5-20R, 100-120V
IEC 60320/C13, 208-240V
NEMA 5-20R, 100-120V
IIEC 60320/C13, 208-240V
Approved Agency US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI) US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI)
