4 In to 3 Displays Out - 3G-SDI Quad Screen Splitter/Multiviewer

SPLITMUX-3GSDI-4

$2,200.00$2,022.99
Save $177.01

Discontinued
Recommended replacement: Component & Composite Video Switches
Alternative options: Contact Us

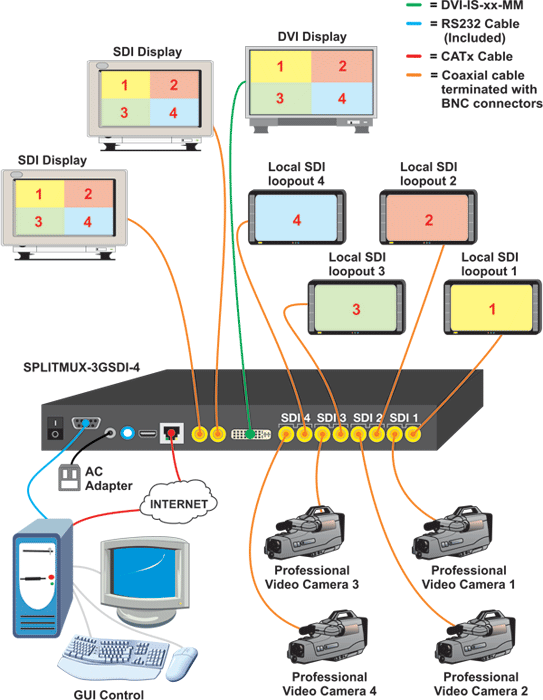

The SPLITMUX-3GSDI-4 3G/HD/SD-SDI Quad Screen Splitter/Multiviewer allows you to simultaneously display real-time SDI or DVI video from two, three, or four different SDI sources on a single monitor. It is capable of displaying the video sources in full screen or custom mode on up to three monitors at the same time. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display, such as to mimic Picture in Picture or Quad display modes.

  • Full Screen and Custom display modes.
    • Custom Display Mode: the size, position and selection of any or all windows are customizable.
    • 2- and 3-source viewing is possible with this method.
    • Maintain input aspect ratio if desired - no stretching necessary.
    • Mimic Picture in Picture and Quad Screen display modes.
  • Independent video in to video out resolution.
  • Display the same video output configuration on up to three monitors at the same time with two SDI outputs and one DVI output.
  • Supports HDTV resolutions to 1080p for 3G/HD/SD-SDI outputs and computer resolutions to 1920x1200 for DVI output.
  • Supports embedded audio through SDI-compatible displays or audio receivers.
  • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
  • Supports a local display for each video input via corresponding loop out SDI connectors.
  • A customized text label can be added for each video window and input to provide easy identification (UMD).
  • Display a digital or analog clock in any position.
  • Control the multiviewer through the Graphical User Interface (GUI) which can be connected via RS232 serial port or Ethernet.
  • Backup and restore multiviewer configurations.
  • Built-in default EDID configuration tables.
    • Supported output resolutions can be selected.

Product Specifications

InputsFour female 75 ohm BNC connectors for 3G/HD/SD-SDI video input.
Supports embedded audio through SDI-compatible displays or audio receivers.
Supports crisp and clear HDTV resolutions to 1080p.
One female RS232 port for serial connection to the Graphical User Interface (GUI) control.
One female RJ45 port for Ethernet connection to the Graphical User Interface (GUI) control.
OutputsDisplay the same video output to up to 3 monitors.
Two female 75 ohm BNC connectors for 3G/HD/SD-SDI video output.
Supports HDTV resolutions to 1080p.
Supports embedded audio through SDI-compatible displays or audio receivers.
One DVI-I connector for single link DVI video output.
Supports computer resolutions to 1920x1200.
Four female 75 ohm BNC connectors for local 3G/HD/SD-SDI loop out video output.
Power110 to 220 VAC at 50 or 60Hz via AC adapter (country-specific line cord included).
Power consumption: 30W.
DimensionsWxDxH (in): 17.3x9.3x1.75 (440x236x44 mm).
Includes 1U rackmount kit.
EnviromentalOperating temperature: 32°F to 104°F (0°C to 40°C). Storage temperature: -4°F to 140°F (-20°C to 60°C). Operating and storage relative humidity: 20 to 90% non-condensing RH.
Regulatory ApprovalsCE, FCC, RoHS, TAA Compliant
