• SRP-02RAU - SmartAVI SRP-02RAU - Click To Enlarge

2-Port Smart Remote Power Unit

SRP-02RAU

$399.00$310.91
Save $88.09
FREE Shipping on orders over $100
smartavi_madeinusa

The SRP-02R has a comprehensive and easy-to-use web interface for monitoring and controlling the functions of the unit. Simply log on to the device through a web browser and setup the many functions of the SRP-02R. Turn outlets on and off, reboot outlets, monitor power usage and more

Applications

  • Control the power to mission critical devices such as a colocation servers, ATMs or cash registers
  • Monitor how much energy is used by devices
  • Reboot servers when they become unresponsive
  • Schedule times to power off unused devices to save energy and money

Features

  • Reboot your computer or other devices remotely via the internet
  • Control power usage by creating schedules to save energy and money
  • Monitor power usage to determine how much electricity has been used
  • Securely monitor, control and reboot devices from anywhere in the world
  • Accessible via RS232, IE, Telnet, Email and SNMP
  • Supports AUTO-MDIX via one RS232 service port & one 10M/100M-T RJ45 ethernet port
  • Supports secure access ethernet connection, encrypted SMTP transfer and https security
  • Configurable with DHCP or static IP
  • Supports per outlet event timers and clock
  • Supports simple internet firewall for added security
  • Autonomous ICMP AutoPing for each power outlet
  • Integrated SNMP agent and trap notification message capability
  • POP3/SMTP for sending and receiving control commands or data
  • Supports per port access management up to 8 users
  • Local and remote temperature and current sensing
  • Dial-up modem support via local serial port
  • Handles large current equipment up to 15-40A 100-240V

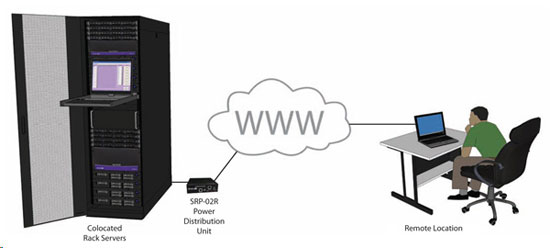

diagram

SmartAVI SRP-02RAU Specifications

Mechanical
Height 1.75 in. (4.44 cm)
Width 6  in. (15.24 cm.)
Depth 6.7 in. (17.01 cm.)
Enter Plug1
Supply SocketNEMA5-15P NEMA5-20P CEE7/7 BS1363 IEC60309 NEMA L6-20P MENA L6-30P
Equipment EndIEC60320-C20
Outlets(2) NEMA5-20R
Input Current20 Amp
Input Voltage100-240 VAC
Console PortBaud rate: 115200;8 data bits; no aprity; 1 stop bit, no hardware handshaking
Ethernet10/100 Base-T, support AUTO-MDIX
Network ProtocolICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP, HTTPS, and SSL
Display6LEDs
UPC / EAN Barcode icon
UPC 813280023504
EAN 0813280023504
