1394 FireWire Extender via CATx, up to 279 Ft.

ST-C51394-250

$405.00$372.41
Save $32.59
FREE Shipping on orders over $100

The XTENDEX USB Extender extends one USB device up to 150 feet using CAT5/5e/6 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5/5e/6 cable.

Features & Benefits

  • Works at speeds of 400, 200 and 100 Mbps.
  • Extend a Firewire device up to 250 feet.
    • Using CAT7 solid 600 MHz cable, extend up to 279 feet.
    • Using CAT6 solid 550 MHz cable, extend up to 250 feet.
    • Using CAT5E solid cable, extend up to 150 feet.
  • Supports Plug-n-Play specifications.
  • Pure hardware design, no software or drivers required.
  • Ideal solution for a wide range of applications, including:
  • A/V broadcasting and editing (printers, scanners, digital cameras, digital audio recorders).
    • Security (surveillance cameras, webcams, mass storage).
    • Long range IEEE FireWire networking.

Package Includes

  • 1394 FireWire Extender - local and remote unit.
  • User manual.
  • Power adapter.
  • 6-inch (152-millimeter) male 9-pin 1394b bilingual to male 6-pin 1394a cable.
  • Male-to-female CAT5E/6/7 RJ45 crossover adapter.

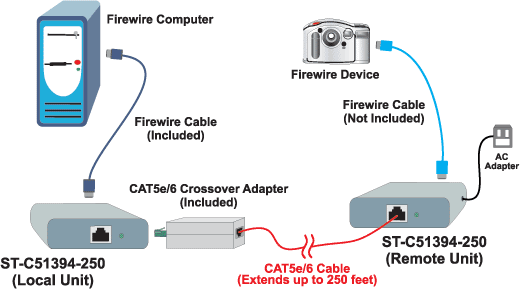

Product Use Diagram

Specifications

Compatibility
PC ConnectionCompatible with computers with 6-pin or 9-pin 1394 connectors.
Data RatesFull duplex data rate at 100/200/400 Mbps.
Connectors(1) Female IEEE 1394 9-pin; (1) Female RJ45; Local and Remote
Mechanical
Width3.00 in (76.2 mm)
Depth2.2 in (55.8 mm)
Height1.0 in (25.4 mm)
Power
InputSupports Self Powered Devices;
Remote: 100-240 VAC 50/60Hz via AC Adapter;
Local: Powered via Firewire
Consumption2.7W
Environmental
Operating Temperature32 to 104°F (0 to 40°C)
Humidity0 to 90% RH, non-condensing
ApprovalsCE, FCC, RoHS
WarrantyTwo Years
