NTI VGA USB KVM Extender Kit via CAT5
(Transmitter & Remote)

ST-C5USBV-300

$495.00$455.17
Save $39.83
FREE Shipping on orders over $100

The XTENDEX¨ ST-C5USBV-300 USB KVM extender extends a USB keyboard/mouse and VGA display up to 300 feet via CAT5/5e/6/6a cable. Each ST-C5USBV-300 consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6/6a cable.

  • Supports local and remote access.
  • Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6/6a extension length).
  • Supports resolutions to 1920x1440.
  • Optional local unit supporting two remote users available (ST-2C5USBV-L-300 or ST-2C5USBVA-L-300) - extend two remote units up to 300 feet. (91 meters)
       * Local access not available on units supporting two remote users.
  • High quality, rugged steel construction with durable powder coat finish.
  • Supports most USB keyboards and mice, including some wireless models.
       * Supports Logitech M100/M-BZ96C/M310 and Dell 0XN967/K251D/XN966/0Y357C mice.
  • Keyboard and mouse are hot-pluggable.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Built-in surge protection.
  • Available with optional stereo audio (ST-C5USBVA-300).
  • Allows users to back-rack broadcast quality servers without impact to post-production operations.

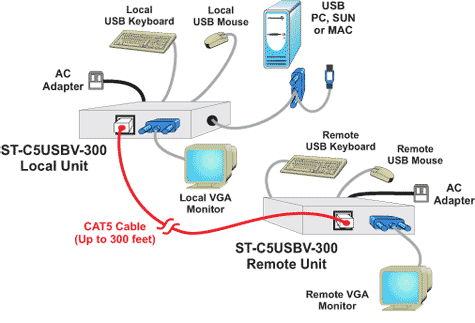

NTI ST-C5USBV-300 USB/VGA KVM extender Application Diagram
NTI 300' VGA/USB KVM Extender Application Diagram

ST-C5USBV-300 Specifications:

Mechanical
Width3.5 in. (8.9 cm.)
Height1.2 in. (3.0 cm.)
Depth3.1 in. (7.9 cm.)
Video
Maximum Resolution w/ CAT5/5e/6 UTP
(refresh frequency 60Hz)
1024 x 768 @ 60Hz- up to 300 feet
1600 x 1200 @ 60Hz- up to 150 feet
1920 x 1440 @ 60 Hz- up to 100 feet
Maximum Resolution w/ CAT5/5e STP
(refresh frequency 60Hz)
1024 x 768 @ 60Hz- up to 300 feet
1280 x 1024 @ 60Hz- up to 150 feet
1600 x 1200 @ 60Hz- up to 100 feet
Video Compatibility WUXGA,UXGA,SXGA, XGA, SVGA, VGA
Video Quality Variable for up to 300 feet of CAT5 cable
Video CouplingDC
Video ConnectorsHD15 male to CPU
HD15 female to local and remote monitors
Sync Types SupportedSeparate and composite TTL Level
Video Signal TypeAnalog RGBHV,RGBS
Maximum Input/Output Levels1.45Vp-p (no offset)
Input / Output Impedance 75 Ohms
Input Horizontal Frequency Range 15kHz to 130 kHz
Input Vertical Frequency Range30 Hz to 150 Hz
Keyboard/Mouse ConnectorsUSB Type A female- to local and remote keyboard/mouse
USB Type A male- to CPU
Interconnect CableCAT5/5e Solid UTP/STP EIA/TIA 568B wiring w/ male RJ45 connectors
    - OR-
CAT6 Solid UTP EIA/TIA 568B wiring w/ male RJ45 connectors
Remote and Local Unit Power120V or 240V (50 or 60Hz) 9VDC/1.0A via AC Adapters
Environmental
Operating temperature32 to 100°F (0 to 38°C)
Storage temperature-20 to 140°F (-30 to 60°C)
Operating and Storage Relative Humidity17 to 90% non-condensing
Regulatory ApprovalCE RoHS
WarrantyTwo years
Question: What OS are supported by this device?
Answer: Thank you for your inquiry,

The NTI ST-C5USBV-300 has been tested to work with: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Please let us know if there is anything else we can help you with!
