NTI XTENDEX ST-C5V VGA

ST-C5V

$440.00

Discontinued
Recommended replacement: NTI XTENDEX ST-C5V-600
Alternative options: Contact Us

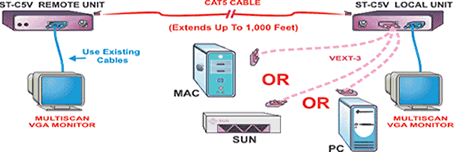

The NTI XTENDEX ST-C5V VGA (ST-C5V) Extender transmits VGA video up to 305 meters away from a computer using CAT5 cable. Each video extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to a monitor.



NTI XTENDEX ST-C5V VGA (ST-C5V)

NTI XTENDEX ST-C5V VGA



Features

Supports local video to any VGA monitor.
Sharpest and clearest VGA of any manufacturer.
Use in-house CAT5/5e/6 wiring to locate a monitor remotely.
Compatible with NTI switches.
Built-in surge protection.


Specifications

Local Unit
General
  Supports a PC, SUN or MAC with VGA video.
  Male 15-pin HD connector for computer video.
  Female 15-pin HD connector for local VGA monitor.
  Female RJ45 connector for CAT5/5e/6 cable.
  Input impedance: 75 Ohms.
  Maximum input levels for video: 1.45Vp-p.
Sync input frequency ranges:
  Horizontal: 15 kHz to 130 kHz.
  Vertical: 30 Hz to 150 Hz.
Power
Power consumption: 5W.
  110 or 220 VAC at 50 or 60 Hz via AC adapter.
Cables
  3-foot male to female VGA cable included.
  Use CAT5, CAT5e, or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH
Regulatory Approvals
  CE

Warning!
The ST-C5V is not designed to be connected to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

Remote Unit
General
  Female 15-pin HD connector.
  Female RJ45 connector for CAT5/5e/6 cable.
  Crisp and clear 1024x768 resolution at 1000 feet.
  Higher resolutions supported at shorter distances.
  Output impedance: 75 Ohms.
  Maximum output levels for video: 1.45Vp-p.
  Supports separate and composite TTL level sync.
Video Quality Adjustment
  Manual adjustment of equalization to obtain optimum image quality.
  Adjust video quality through push buttons on front panel.
  Settings are automatically stored in the unit. The next time the unit is powered up the adjustment will be recalled.
Power
Power Consumption: 5W
  10 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH
Regulatory Approvals
  CE
