NTI HDMI Over IP Extender ST-IPHDMI Local Unit

This is the local unit for the NTI ST-IPHDMI

The NTI IPHDMI-L-333 HDMI Over IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet away using CAT5e/6/7 cable.

The IPHDMI-L-333 is the local unit that connects to an HDMI source, and the ST-IPHDMI-R-333 (not included) is the remote unit that connects to an HDMI display. The ST-IPHDMI local and remote units can be connected together for a Point-to-Point connection, or through VLAN isolation on a managed network switch for a Point-to-Many connection.

NTI IPHDMI-L-333 Features and Benefits:

• Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
• Ideal solution for digital signage applications.
• Broadcast real-time HDMI video/audio to multiple display locations.
• Transmits an HDMI signal over one CAT5e/6/7 cable.
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for Managed network switch.)
• Built in default EDID configuration table.
• Easily expandable. Add remote units as you add monitors.
• Inexpensive CAT5e/6/7 cable replaces bulky video cables.
• Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
• The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
• Each VLAN acts as a separate HDMI Over IP Channel on the network.
• Cascade managed switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 333 feet from the managed switch.
• Use a PC to access the built-in HTTP Interface of the managed network switch to control what signal is being watched at each location.
• Built-in scaler function allows different input and output resolutions without having to lower the quality of the HDMI source.
• Internal JPEG video compression adapts to available bandwidth if needed.
• HDCP compliant.
• Compliant with HDMI 1.3 standard.
• Full IR control of HDMI source from remote HDTV extension in Point-to-Point connections.
• Local and remote units must be in the same LAN. The units do not support WAN connections.

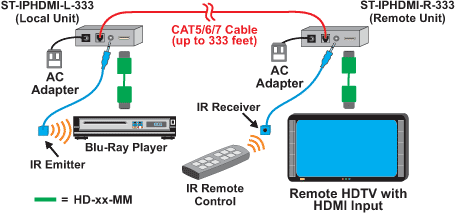

NTI HDMI over IP Extender Diagram
(ST-IPHDMI-L-333 / ST-IPHDMI-R-33 depicted here)

NTI IPHDMI-L-333 Specifications:
