SmartAVI SuperMatrix Component or UXGA + Audio 8x8 Matrix switch w/RS232 Control

SMX-AV0808S

$6,999.00

Discontinued
For upgrade or replacement options: Contact Us

The SmartAVI SuperMatrix is a Component or UXGA + Audio over CAT5 8x8 Matrix with RS232 Control which combines all the functions of and audio matrix, video matrix, IR matrix and a full rs-232 matrix into one compact design.  SuperMatrix was designed to be installed anywhere the distribution of multiple video formats throughout large areas is needed. Places like hotels, command centers, boardrooms, educational environments, entertainment facilities even high definition home integration.  Other uses include: Video Walls, Audio Visual Presentations, Digital Signage, Shopping Centers, Airports, Security, Dealer Rooms, Point of Sale, Control Rooms.

SmartAVI SuperMatrix Features:

  • Switches 16 inputs to any 16 outputs for unmatched design flexibility.
  • SuperMatrix is a full non-blocking switching matrix.
  • Integrated RS-232 and Infrared matrix offers unparalleled control.
  • Switch signals from devices located up to 1,000 feet apart.
  • HD compatible (720p, 1080i, 1080p).
  • Supports high resolution video up to 1900x1200.
  • Sends crystal clear stereo audio.
  • Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable.
  • Compatible with Video Composite, S-Video, Component and XVGA interface.
  • Increases productivity by providing access to 16 computers from 16 workstations.
  • Can be controlled via software interface, remote control, Internet or RS/232.
  • Full RS-232 Matrix
  • One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can;
  • Remotely power on and off all of the connected display devices.
  • Send commands such as video schedules or input source.
  • Reporting.
  • Enable touch-screen displays to send and receive data.
  • Interrupt displays with Alerts and urgent messages.
  • Controlling the Matrix
  • Another key feature is its capacity to support multiple control interfaces;
  • Control via RS-232 using SmartControl; our Windows based Software included with the system.
  • SuperMatrix also allows multiple users to access the matrix from anywhere in the world using our http interface
  • You can also use a remote control through an Infrared connection.

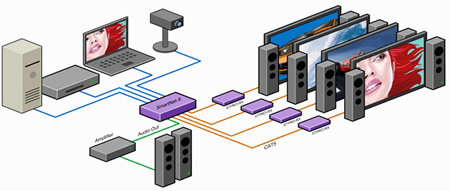

SmartAVI SuperMatrix Application Diagram
SmartAVI SuperMatrix Application Diagram

SmartAVI SuperMatrix Specifications:

Mechanical
Height 3.46 in. (88 mm.)
Width 19 in. (482 mm.)
Depth 17 in. (450 mm.)
Weight 9 lbs. (4 kg.)
Rack Units 1U
Power Voltage 90-230V IEC 1A A/S 56/60 Hz
Video
Bandwidth 400 MHz
Input Signal Level 1 Volt pk-pk into 75R
Output Impedance 100 Ohms
Input Impedance 75 Ohms
Connector 16 x HD15 socket female
Format VGA/SVGA/XGA/RGBHV
/RGsB/CVBS/YC/
YUV/RGBS
Syncs TTL5VDC
Bandwidth Horizontal Sync up to 85KHz

RS-232
16 x RS232 DB9 Female, TX, RX, GND
Infrared 16 x IR 3.5mm Jack to IR emitter
Front Panel 16 x RJ45 with video, audio and data
modulated within single UTP
Audio
Signal 15KHz 0dB unbalanced 100 Ohms
impedance
Connector RCA or 3.5 Stereo Jack
Control
IR 3.5mm connector with 38khz
DB9 female RS232 or RS422 @ 9600bps
UPC / EAN Barcode icon
UPC 813280023368
EAN 0813280023368
