Avocent SwitchView IP 1020 Remote Access Device



For upgrade or replacement options: Contact Us

The Avocent SwitchView SVIP1020-001 is a remote access device which includes an on-board Web interface that gives small to medium size businesses convenient, secure, browser-based access to existing KVM switches and servers.  The SwitchView IP 1020 lets you select DES, 3DES, AES or 128bit SSL encryption for keyboard, mouse and video. The device's Java video viewer supports Internet Explorer, Mozilla, Firefox and Netscape. Plus, the SwitchView IP 1020 remote access device is Flash upgradeable for fast and easy updates.  With this remote access solution, you also utilize the Dambrackas Video Compression (DVC) algorithm for high quality video and you gain a local port for convenient connectivity to the KVM switch or server.

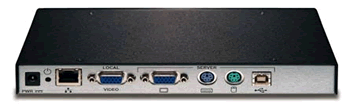

Avocent SwitchView IP 1020 Backside
Avocent SwitchView IP 1020 Backside

Avocent SVIP1020-001 Features & Benefits:

  • Remote access to KVM switches or computers
  • Flexible multi-platform support
  • Includes local access
  • Flash-upgradeable
  • Ease of installation
  • Selectable encryption
  • High video resolution- 1600x1200 for local users and 1280x1024 for remote users.

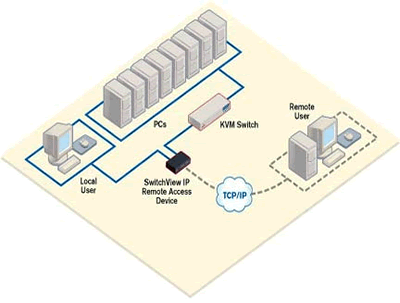

Avocent SVIP1020-001 Remote Access Diagram
Avocent SVIP1020-001 Remote Access Diagram

Avocent SVIP1020-001 Specifications:

Height 1.06 in. (2.70 cm.)
Width 8.19 in. (20.80 cm.)
Depth 5.25 in. (13.34 cm.)
Weight 1.5 lbs. (0.68 kg.)
Operating Temperature 32 to 104 degrees F (0 to 40 degrees C)
Storage Temperature -22 to 158 degrees F (-30 to 70 degrees C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz autosensing
Input 10 W maximum
Supported Hardware
Computers PS/2, USB
Monitor (VGA, SVGA (XGA, XGA-II with adaptor),
Maximum Local Port: 1600 x 1280
Maximum Remote Port: 1280 x 1024 @75 Hz
Peripherals PS/2 keyboard, PS/2 mouse, IntelliMouse
Approved Agency UL, FCC Class B, cUL, ICES-003 Class B,
CE, GS, VCCI Class B, MIC Class A, C-Tick
UPC / EAN Barcode icon
UPC 636430030425
EAN 0636430030425
Question: I am getting a certificate expired error from the Java client and a warning about the manifest being out of date - is there an update to fix this?
Answer: Thank you for your inquiry. Unfortunately, detailed technical support is beyond the scope of this simple FAQ. That being said, here is some information. It is entirely possible that a recent java update is not compatible with the viewer. Although Avocent is typically pretty good at releasing firmware updates, the last firmware update for the SVIP1020 is dated 7-29-2008 (http://www.avocent.com/Support_Firmware/SwitchView_Digital/SwitchView_IP_1020_Remote_Access_Device.aspx).

We have not seen this particular error before, but it may be possible to add the SVIP1020 to an Exception Site list. Instructions for configuring the exception list can be found here: http://www.java.com/en/download/faq/exception_sitelist.xml.

If you are unable to get the viewer working, we would recommend contacting Avocent directly. There is a support community for the SwitchView IP which can be found here: http://community.emerson.com/networkpower/support/avocent/kvmip/switchviewip/.
