  • SX-RX500S - SmartAVI SX-500 Receiver - Click To Enlarge

Video/Audio/PS2/RS-232 CAT5 Receiver

SX-RX500S

$299.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The SX-500 Receiver device is designed to allow access to the PC from a keyboard, mouse, and monitor at a remote location up to 1000 ft. away.

Features

  • Provides remote access of the PC with keyboard, mouse and monitor
  • Uses single CAT-5 UTP cable to reduce installation costs
  • Extends signal to a maximum distance of 1,000 feet
  • Supports all PC/AT and PS/2 keyboards with full emulation
  • Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored
  • Supports full emulation and conversion on all PC/AT and PS/2 mice
  • Recognizes and supports a mix of PC/AT and PS/2 mice
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Supports computer monitors with resolution of up to 1920x1200
  • Offers adjustable cable compensation
  • Compact metal enclosure
  • Extends signal to a maximum of 1,000 ft
  • Supports stereo audio
  • Supports RS232 from 300bps up to 19,200 bps
  • Compensation for each color

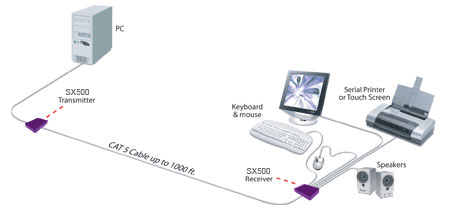

diagram

SmartAVI SX-500 Receiver Specifications

Mechanical
Height 1.5 in. (3.81 cm)
Width 6.25 in. (15.87 cm.)
Depth3.75 in. (9.52 cm.)
Bandwidth15KHz
Signal Level0db unbalanced
Input Impedance10K ohms
Output Impedance100 ohms
System ConnectionRJ45 Connected to CAT5 UTP
RS232 Data up to 57,600
Resolution1920x1200 up to 300 ft, 1600x122 up to 450 fr, 1280x1024 up to 650 ft, 1024x768 up to 1000 ft
System ConnectionRJ45 connected to CAT5 UTP
Power240V/ 110V 12VDC1.5A
UPC / EAN Barcode icon
UPC 813280023580
EAN 0813280023580
