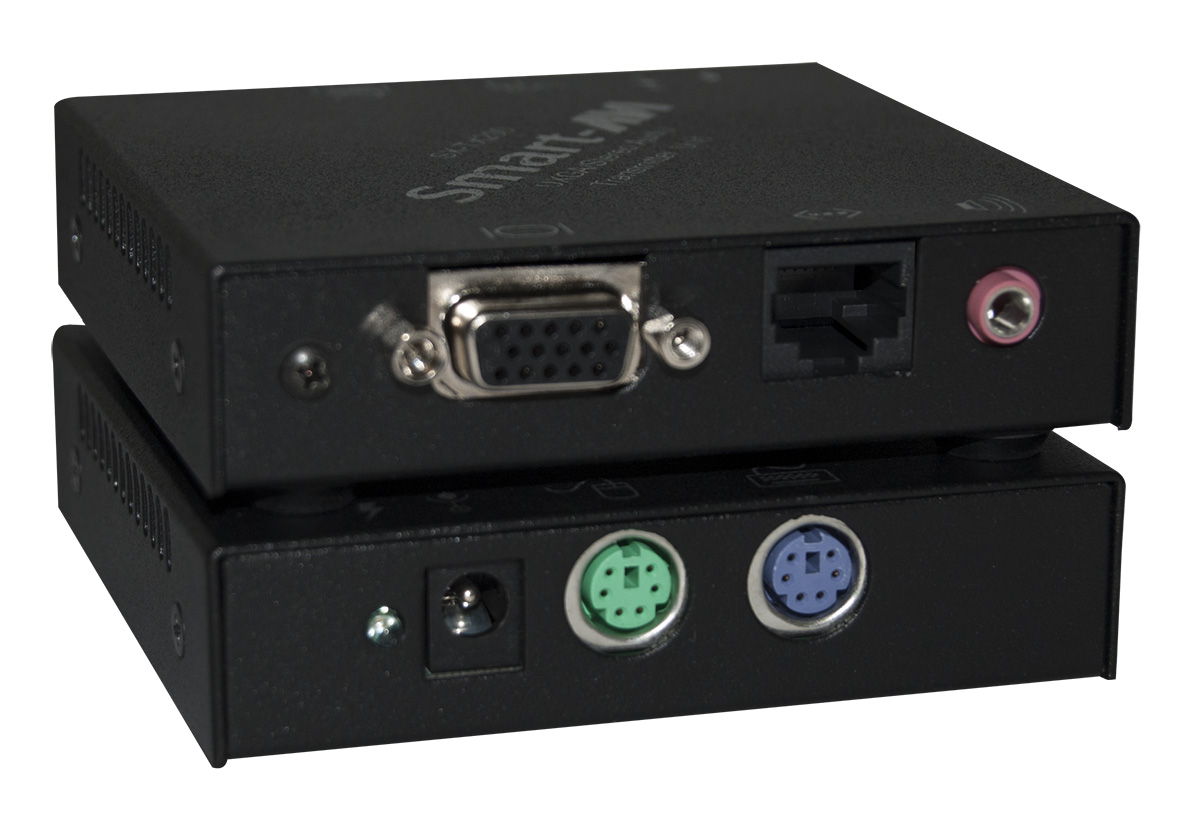

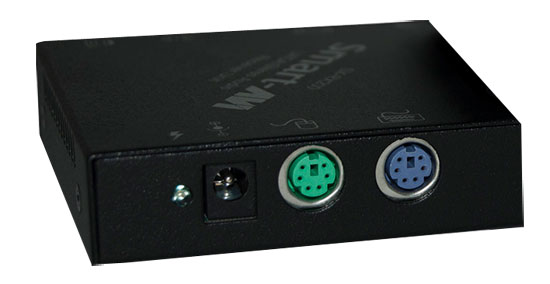

• SX-TX200S - SmartAVI SX-200 Transmitter - Click To Enlarge

Video/Audio/PS2 CAT5 Transmitter



For upgrade or replacement options: Contact Us


The SX-200 Transmitter device designed to allow access to the PC from a keyboard, mouse, and monitor at a remote location up to 500 ft. away. The extension is accomplished over a single CAT5 cable.



  • Provides remote access of the PC with keyboard, mouse and monitor
  • Uses single CAT-5 UTP cable to reduce installation costs
  • Extends signal to a maximum distance of 500feet
  • Supports all PC/AT and PS/2 keyboards with full emulation
  • Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored
  • Supports full emulation and conversion on all PC/AT and PS/2 mice
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Supports computer monitors with resolution of up to 1600x1200
  • Offers adjustable cable compensation
  • Compact metal enclosure
  • Supports stereo audio

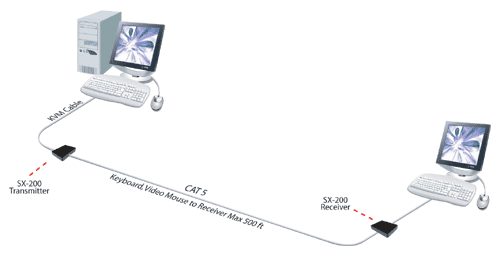

SmartAVI Cat5 Extender Diagram

SmartAVI SX-200 Transmitter Specifications

Height 1.5 in. (3.81 cm)
Width 6.25 in. (15.87 cm.)
Depth3.75 in. (9.52 cm.)
Signal Level0db unbalanced
Input Impedance10K ohms
Output Impedance100 ohms
Connector3.5 mm stereo jack
RS232 Data up to 57,600
System ConnectionRJ45 connected to CAT5 UTP
Power240V/ 110V 12VDC1.5A
UPC / EAN Barcode icon
UPC 813280023597
EAN 0813280023597
