SmartAVI Video/Audio/PS2 Point to Point CAT5 Extender System
SX-200S
The SmartAVI SX-200 is a high resolution CAT5 extender designed to broadcast desktop keyboard, video, mouse, and stereo audio signals over unshielded twisted pair cabling (CAT5).

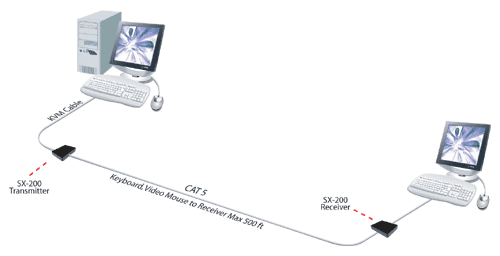

SmartAVI Cat5 Extender Diagram
- Provides remote access of the PC with keyboard, mouse and monitor.
- Uses single CAT-5 UTP cable to reduce installation costs
- Extends signal to a maximum distance of 500feet
- Supports all PC/AT and PS/2 keyboards with full emulation
- Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored.
- Supports full emulation and conversion on all PC/AT and PS/2 mice
- Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
- Supports computer monitors with resolution of up to 1600x1200
- Offers adjustable cable compensation
- Compact metal enclosure
- Supports stereo audio
SmartAVI SX200 Package Includes:
- SXTX200 Transmitter
- SXRX200 Receiver
- KVM cable (CCKVMMM06)
- 5VDC power supply (PS5VD1AU) 2units
SmartAVI SX200 Specifications:
| Mechanical | |
| Height | 1.5 in. (3.81 cm.) |
| Width | 6.25 in. (15.87 cm.) |
| Depth | 3.75 in. (9.52 cm.) |
| Power | 240V / 110V 12VDC1.5A |
| Supported Hardware | |
| CPUs | IBM PC, SUN, MAC-ADB |
| Keyboard | PS/2, MAC-ADB, SUN |
| Mouse | PS/2, Wheel Mouse |
| Monitors | VGA, SVGA, XGA and VESA |
| Video Signal | Analog Signal: Red, Green, Blue 0.7Vp-p/75 ohms positive |
| RS232 | Data up to 57,600 |
| Resolution | 1600x1200 |
| Bandwidth | 200 MHz |
| Sync | TTL Compatible |
| Front Panel | LEDs for each KVM station and power |
| Software | Independent |
| CPU Connection | HD15 female for the video input and output MINIDIN6 female for the keyboard mouse jack stereo 3.5mm for audio in and out. |
| System Connection | RJ45 connected to CAT5 UTP |
| Audio | |
| Bandwidth | 15KHz |
| Signal level | 0dB unbalanced |
| Input Impedance | 10K ohms |
| Output Impedance | 100 ohms |
| Connector | 3.5mm stereo jack |
