SmartAVI Video/Audio/PS2/RS232 Point to Point CAT5 Extender System

SX-500S

$599.00

Discontinued
For upgrade or replacement options: Contact Us

The SamrtAVI SX500 is a high resolution CAT 5 designed to broadcast desktop keyboard, video, mouse, RS232 and stereo audio signals over unshielded twisted pair cabling.

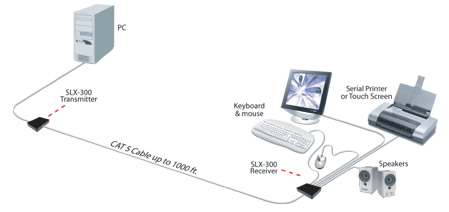

SX500 Diagram



SmartAVI SX500 Features and Benefits:

  • Provides remote access of the PC with keyboard, mouse and monitor.
  • Uses single CAT-5 UTP cable to reduce installation costs
  • Extends signal to a maximum distance of 1,000 feet
  • Supports all PC/AT and PS/2 keyboards with full emulation
  • Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored.
  • Supports full emulation and conversion on all PC/AT and PS/2 mice
  • Recognizes and supports a mix of PC/AT and PS/2 mice
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Supports computer monitors with resolution of up to 1600x1200
  • Offers adjustable cable compensation
  • Compact metal enclosure
  • Extends signal to a maximum of 1,000 ft
  • Supports stereo audio
  • Supports RS232 from 300bps up to 19,200 bps
  • Compensation for each color

    SX500 Specifications:

    CPUs IBM PC, SUN, MAC-ADB
    Keyboard PS/2, MAC-ADB, SUN
    Mouse PS/2, Wheel Mouse
    RS232 Data up to 57,600
    Monitors VGA, SVGA, XGA and VESA
    Video Signal Analog Signal: Red, Green, Blue
    0.7Vp-p/75 ohms positive
    Resolution 1600x1200
    Bandwidth 200 MHz
    Sync TTL Compatible
    Front Panel LEDs for each KVM station and power
    Software Independent
    Power 240V / 110V 12VDC1.5A
    Size 6.25Wx3.75Dx1.5H
    CPU Connection HD15 female for the video input and output MINIDIN6 female
    for the keyboard mouse jack stereo 3.5mm for audio in and out.
    System Connection RJ45 connected to CAT5 UTP
    Audio Bandwidth 15KHz
    Signal level 0dB unbalanced
    Input Impedance 10K ohms
    Output Impedance 100 ohms
    Connector 3.5mm stereo jack
  • UPC / EAN Barcode icon
    UPC 813280023559
    EAN 0813280023559
