Raritan T1700G2-LED 17-inch LCD console
T1700G2-LED
Save $129.12
Raritan 1U, 17" T1700G2-LED Console Drawer
4-Port USB 4K HDMI Dual-Display KVMP™ Switch (Cables included)
- Superior video quality - up to 4096 x 2160 @ 60 Hz
- Supports Video DynaSync™
- All HDMI & USB cables included
- Computer selection via remote port selector, hotkeys, and USB mouse

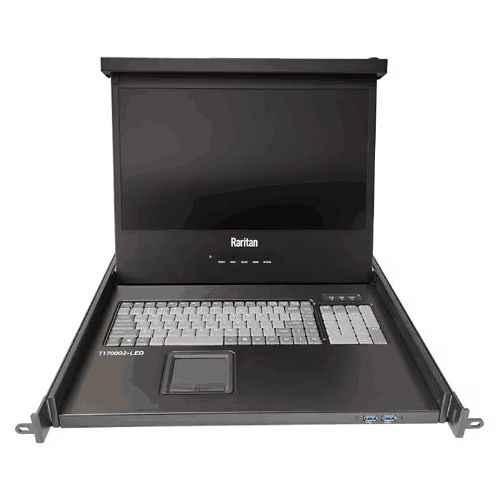

The Raritan T1700G2-LED is a 1U rackmount console drawer featuring a 17" LED-backlit widescreen LCD display, designed for streamlined server management in data centers, labs, and IT environments. It connects directly to existing analog or digital KVM switches, combining video, keyboard, and touchpad control in a single compact unit. The 17" panel delivers enhanced image clarity with native Full HD 1920×1080 @ 60 Hz resolution and a 16:9 aspect ratio, ensuring crisp, accurate visuals for efficient system administration.
The Raritan T1700G2-LED is a 1U modular LED-backlit LCD drawer designed to give IT and lab administrators quick, reliable at-the-rack access to their servers for setup, maintenance, and management tasks. Featuring a 17" LED display that delivers bright, energy-efficient performance, the T1700G2-LED consolidates video, keyboard, and touchpad functionality into one streamlined workstation. When connected to existing analog or digital KVM switches, it provides unified control of one or multiple server racks. A built-in USB 3.0 port at the front of the console adds convenience for connecting external devices such as smart card readers, flash drives, or a mouse and keyboard-making the T1700G2-LED a practical, space-saving solution for any data center or lab environment.
T1700G2-LED Features
- HDMI/DP/DVI and VGA video inputs for use with Dominion® and MasterConsole® Series.
- LED-backlighting provides up to 20-50% energy savings over CCFL-backlighting LCD technology.
- Accurate image rendering and video performance for sharp, clear pictures.
- Space-saving 1U design uses 85% less space.
- Supports DDC, DDC2, DDC2B.
- USB 2.0 or 3.0 passthrough port to connect external devices e.g. a smart card reader.
- Auto power on/off when opening and closing the monitor below a 20-degree angle.
- Support for Microsoft Windows®, Linux® and other operating systems.
Raritan T1700G2-LED Technical Specifications
| Model | T1700G2-LED |
| Form Factor | 1U Rackmount |
| Dimensions (W × D × H) | 482.4 × 530 × 42.8 mm (18.99" × 20.87" × 1.69") |
| Weight | 12 kg (26.46 lbs) |
| Display Size | 17.3" TFT LED-Backlit LCD |
| Panel Type | Active Matrix TFT LCD with LED Backlight |
| Maximum Resolution | 1920 × 1080 @ 60 Hz (Full HD 1080p) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Brightness | 300 nits |
| Supported Colors | 16.7 million |
| Video Inputs | Supports DVI-I, HDMI, and DisplayPort |
| DDC Support | DDC / DDC2 / DDC2B |
| Keyboard / Mouse | 104-key keyboard with 2-button touchpad |
| Keyboard Language Support | English, French, German, Swiss German, Italian, Japanese, Russian, Spanish, Turkish |
| USB Port | 1 × USB 3.0 passthrough port (front) |
| Power & Heat Dissipation | Auto-sensing 100-240 VAC, 50/60 Hz, 1.47 A, 17.64 W, 15.17 Kcal |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 5 - 90% RH, Non-Condensing |
| MTBF | 15,000 Hours |
| Altitude | Operational: up to 4,572 m (15,000 ft) Non-operational: up to 9,144 m (30,000 ft) |
| Shock & Vibration | 10G peak acceleration (11 ms); 1-200 Hz, 1.15 Grms random vibration |
| Certifications | FCC, CE, VCCI, UL, RoHS |
| Warranty | 2 Years (1-year and 2-year extensions available) |
