TLX video extender transmitter module; single display up to 4096x2160 @30Hz


**Note: This is a Transmitter unit only. Click here for the Receiver, or Click here for the Extender Pair.

TLX extension systems deliver uncompressed, high resolution video, audio and peripheral data on a single stream over single duplex fiber or single CATx cable. Configurable to specifically suit the requirements of any application, these TLX extender can support up to 4K @ 30Hz video (4096x2160) with full duplex stereo audio. The TLX design offers support for both HDMI 1.4 and DisplayPort 1.2 connector types in a single extender, with full support for HDCP content. Additionally, TLX extension systems support embedded audio, with the ability to de-embed audio at the receiver.

Features & Benefits

  • Connector supports both HDMI 1.4 and DisplayPort 1.2 cables
  • 10Gbps bandwidth per port
  • Multi-mode fiber
    • Single mode fiber and CATx configurations available
  • Extension of up to 80km over fiber
  • Support for a single display up to 4096x2160 @ 30Hz - over a single fiber
  • Supports HDCP content
  • Local output port(s)
  • Ethernet port for configuration, management and updates
  • Support for embedded audio, with ability to de-embed at the receiver
  • Modular, hot-swappable form factor for field configuration
  • Several chassis types available, for surface mount and rack mount applications
    • Modular Chassis 1 - supports up to a single video extender module
    • Modular Chassis 2 - supports up to two video extender modules
    • Modular Chassis 4 - supports up to four video extender modules and offers redundant, hot-swappable power supplies

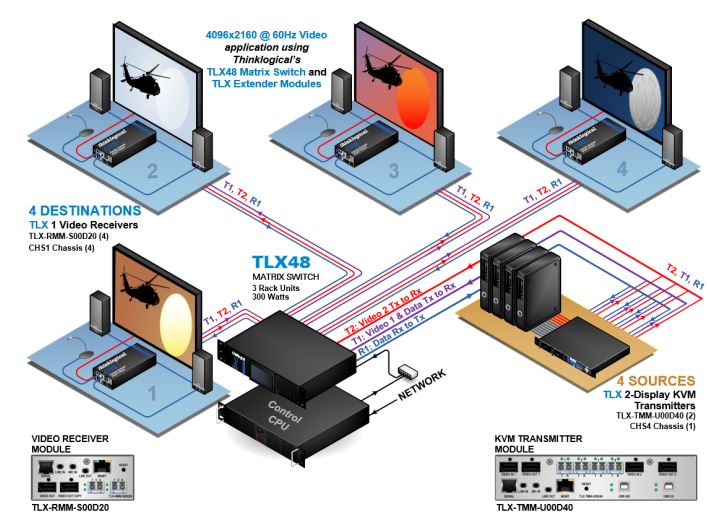

Product Diagram

TLX KVM Extension Systems found here


Height1.592 in. (40.43mm)
Depth6.366 in. (161.69mm)
Width3.693 in. (93.8mm)
Tolerance± .039 in. (1mm)
Multi-mode Fiber DistancesUp to 33m, Type OM1
Up to 82m, Type OM2
Up to 300m, Type OM3
Up to 400m, Type OM4
Operating Temperature32 to 122°F (0 to 50°C)
Humidity5 to 95% RH, non-condensing
Supply Voltage100-240 VAC, 47-63Hz: Universal AC Power Supply
ComplianceApprovals for US, Canada and European Union
WarrantyOne Year Standard
