• TPVOYG3PLUS - TinyPilot TPVOYG3PLUS - Click To Enlarge

Secure KVM Over IP + Console Server with PoE for Remote Server Access | TinyPilot Voyager 3 Plus

TPVOYG3PLUS

$499.00
FREE Shipping on orders over $100

TinyPilot TPVOYG3PLUS

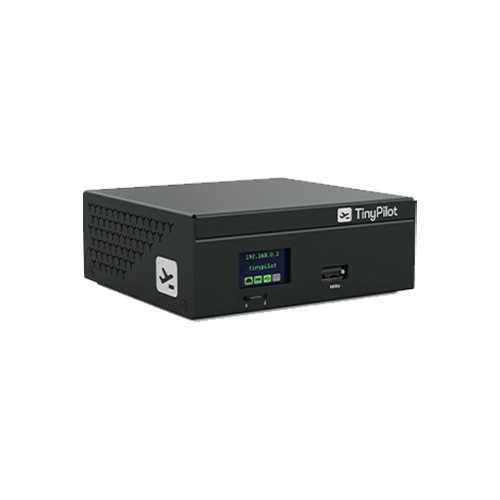

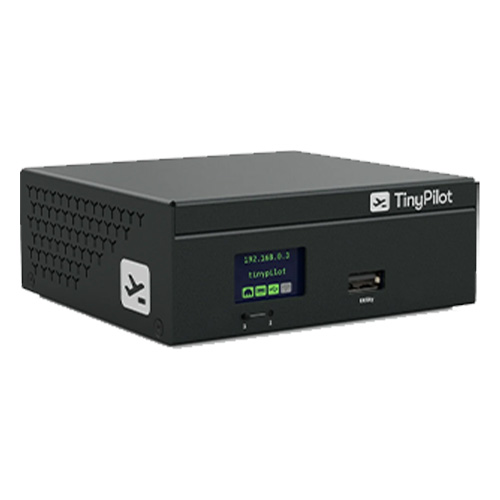

TinyPilot Voyager 3 Plus KVM over IP & Console Server

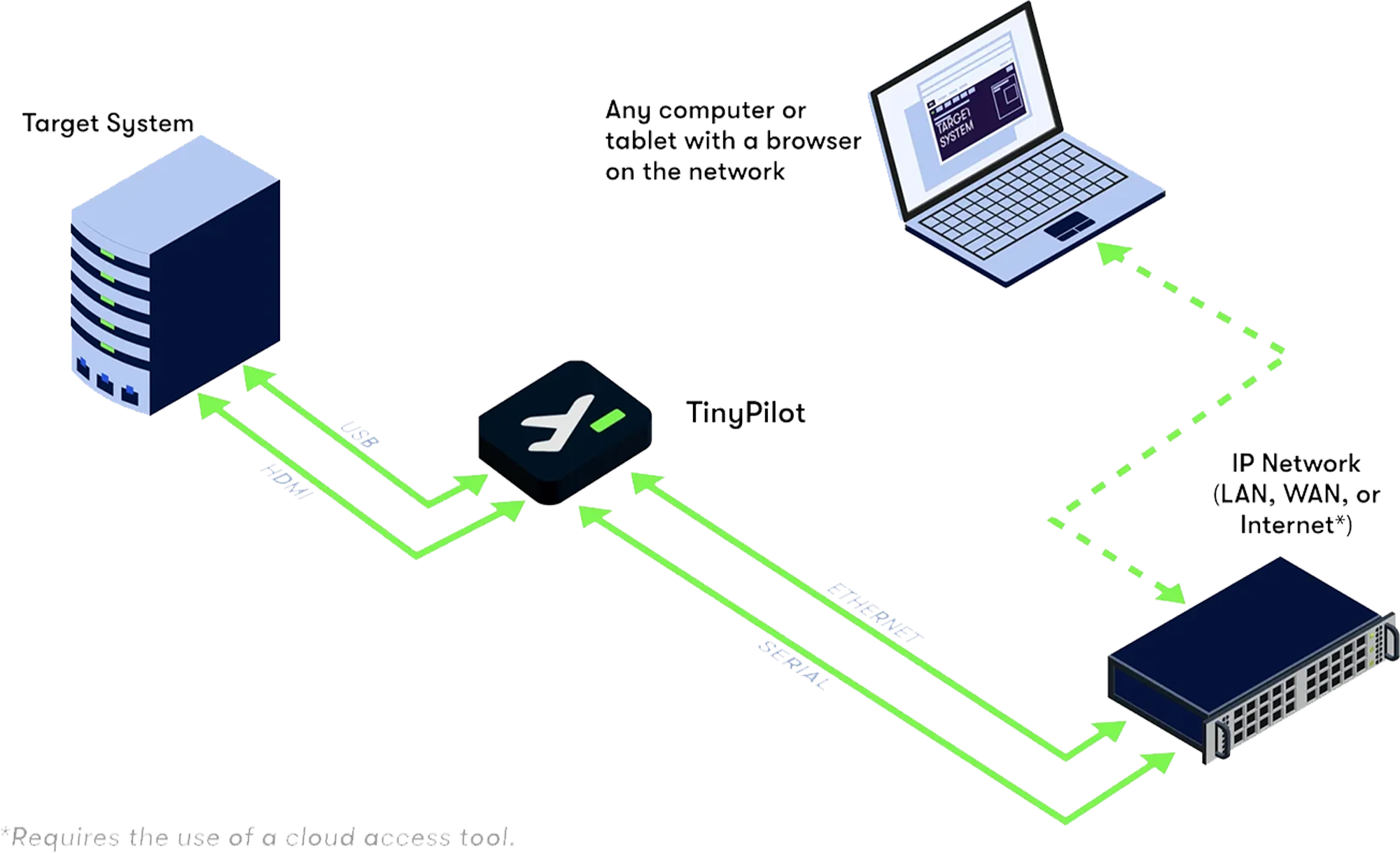

TinyPilot TPVOYG3PLUS Diagram

TinyPilot Voyager 3 Plus KVM over IP & Console Server Benefits

  • Recover access when normal tools fail
    • Use TinyPilot to reach systems at the hardware layer when your OS won't boot, your network breaks, or your usual remote access tools stop working.
  • KVM over IP + console server in one device
    • Standardize remote recovery with browser-based KVM over IP and built-in serial console access in a single device.
  • Secure remote access without open inbound ports
    • Deploy TinyPilot on your LAN, over VPN, or through modern Zero Trust overlays instead of exposing the device directly to the public internet. Install Tailscale with one click.
  • No software to install
    • Run TinyPilot without installing software on the target system or client software on the operator's machine. Open a browser and connect.
  • Mount virtual media for installs and recovery
    • Use virtual media to install operating systems, transfer files, and handle provisioning workflows without sending someone onsite.
  • US-based support and a 12-month warranty
    • Get support from our US-based team and protect your deployment with an included 12-month advance replacement warranty.

TPVOYG3PLUS Package Contents

Tiny Pilot TPVOYG3STD Back Ports

  • (1) TinyPilot Voyager 3 Plus IP KVM
  • (1) 1.8m USB-C to USB-A cable
  • (1) 1.8m HDMI cable
  • (1) 1.8m USB-C power adapter

TinyPilot TPVOYG3PLUS Resources

TPVOYG3PLUS Quick Start Guide

TinyPilot TPVOYG3PLUS Specifications

Specifications
Dimensions 109mm x 102mm x 43mm
Processor Broadcom BCM2711, quad-core 1.5 GHz ARM CPU
Memory 2 GB RAM
Storage 32 GB industrial-grade storage
Power 5.1V 3A USB-C power adapter
PoE Active PoE IEEE 802.3af/at/bt (Plus version only)
Network Gigabit Ethernet
Second Ethernet port Available on Plus version only
Cooling Ultraquiet 5,000 RPM fan
Operating temperature -20°C to +85°C
Compliance FCC/CE compliant
Wireless 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless*
Interface Pure HTML5 interface with no client software required
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Video passthrough HDMI "loop" output provides video passthrough
User accounts Unlimited
Concurrent users Up to 8 simultaneous remote users without blocking local access
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Connection security Secure TLS/HTTPS connection
Console server Built-in Console Server
Requirements
USB connection A USB-A port on your server
Video connection An HDMI port on your server, or a suitable adapter
Network connection An Ethernet cable
UPC / EAN Barcode icon
UPC 199874351254
EAN 0199874351254
