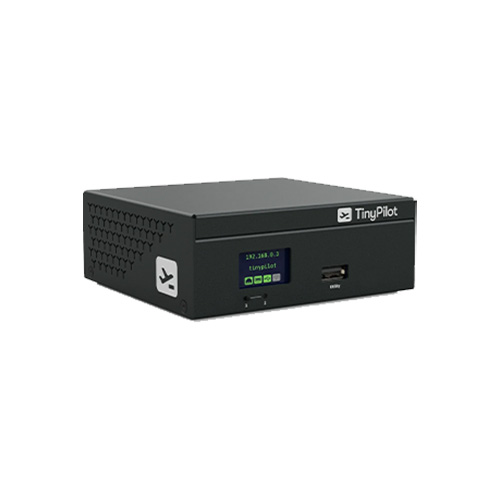

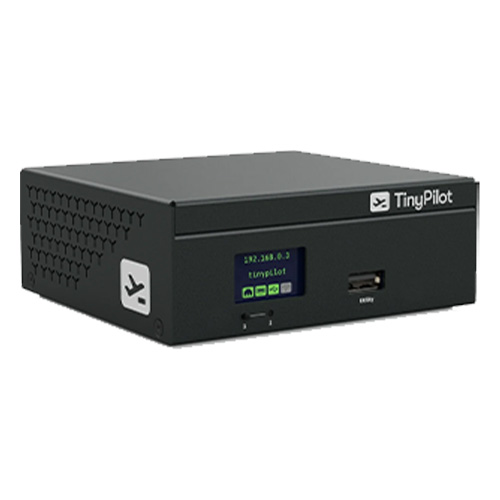

• TPVOYG3STD - TinyPilot TPVOYG3STD - Click To Enlarge

Secure KVM Over IP + Console Server for Remote Server Access | TinyPilot Voyager 3

TPVOYG3STD

$399.00$379.00
Save $20.00
FREE Shipping on orders over $100

TinyPilot TPVOYG3STD
TinyPilot Voyager 3 KVM over IP & Console Server

TinyPilot TPVOYG3STD Diagram

TinyPilot Voyager 3 KVM over IP & Console Server Benefits

  • Recover access when normal tools fail
    • Use TinyPilot to reach systems at the hardware layer when your OS won't boot, your network breaks, or your usual remote access tools stop working.
  • KVM over IP + console server in one device
    • Standardize remote recovery with browser-based KVM over IP and built-in serial console access in a single device.
  • Secure remote access without open inbound ports
    • Deploy TinyPilot on your LAN, over VPN, or through modern Zero Trust overlays instead of exposing the device directly to the public internet. Install Tailscale with one click.
  • No software to install
    • Run TinyPilot without installing software on the target system or client software on the operator's machine. Open a browser and connect.
  • Mount virtual media for installs and recovery
    • Use virtual media to install operating systems, transfer files, and handle provisioning workflows without sending someone onsite.
  • US-based support and a 12-month warranty
    • Get support from our US-based team and protect your deployment with an included 12-month advance replacement warranty.

TPVOYG3STD Package Contents

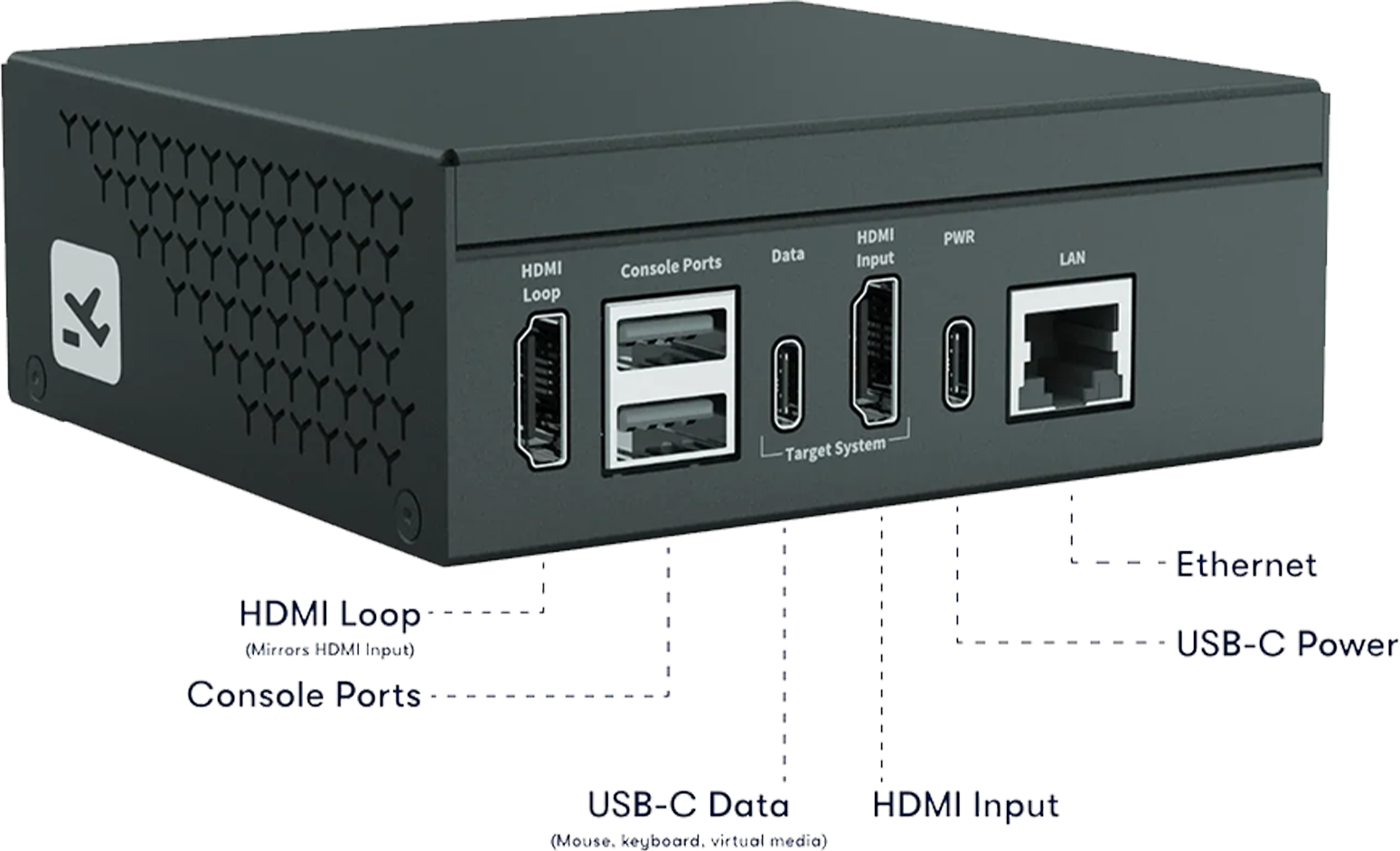

Tiny Pilot TPVOYG3STD Back Ports

  • (1) TinyPilot Voyager 3 IP KVM
  • (1) 1.8m USB-C to USB-A cable
  • (1) 1.8m HDMI cable
  • (1) 1.8m USB-C power adapter

Tiny Pilot TPVOYG3STD Resources

TPVOYG3STD Quick Start Guide

Tiny Pilot TPVOYG3STD Specifications

Specifications
Dimensions 109mm x 102mm x 43mm
Processor Broadcom BCM2711, quad-core 1.5 GHz ARM CPU
Memory 2 GB RAM
Storage 32 GB industrial-grade storage
Power 5.1V 3A USB-C power adapter
Network Gigabit Ethernet
Cooling Ultraquiet 5,000 RPM fan
Operating temperature -20°C to +85°C
Compliance FCC/CE compliant
Wireless 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless*
Interface Pure HTML5 interface with no client software required
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Video passthrough HDMI "loop" output provides video passthrough
User accounts Unlimited
Concurrent users Up to 8 simultaneous remote users without blocking local access
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Connection security Secure TLS/HTTPS connection
Console server Built-in Console Server
Requirements
USB connection A USB-A port on your server
Video connection An HDMI port on your server, or a suitable adapter
Network connection An Ethernet cable
UPC / EAN Barcode icon
UPC 199874294865
EAN 0199874294865
