ATEN USB to Parallel Cable

UC1284B

$22.00
FREE Shipping on orders over $100

ATEN UC1284B USB to Parallel Cable
ATEN's UC1284B USB to IEEE-1284 Bi-directional Printer Cable allows you to send print job from an USB-only computer to parallel printers. This cable is fully compliant with USB 1.1 and IEEE 1284 1994 specifications. ATEN UC1284B features bi-directional data transfer at the parallel port to assure high-speed printing and a maximum data transfer rate of 12 Mbps. It is easy to install, hot swappable, and does not require any external power adapters.

ATEN UC1284B USB to Parallel Cable Features and Benefits:

  • Allows USB Only Computers to send Print Jobs to Parallel Printers
  • Fully Compliant with USB 1.1 and IEEE 1284 Specifications
  • Allows High-speed Printing Up to 12 Mbps Data Transfer Rate
  • Low Power Consumption
  • No Need for External Power Adapter
  • Plug-n-Play

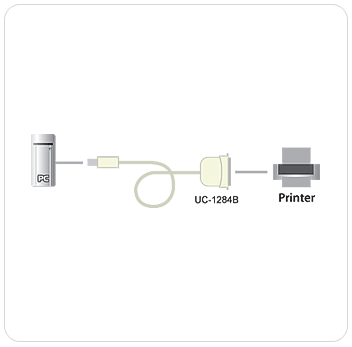

ATEN UC1284B Function Diagram
ATEN UC1284B USB to Parallel Cable


ATEN UC1284B USB to Parallel Cable Requirements: For PC Users Windows 98, 98SE,2000, ME, XP Available USB port

ATEN UC1284B USB to Parallel Cable Package Content:
1 x UC 1284 USB to Parallel Adapter Cable
1 x Warranty card
1 x Instruction sheet

ATEN UC1284B USB to Parallel Cable Specifications:

Case
Width 10.75 in. (27.31 cm.)
Height 10 in. (25.4 cm.)
Length 20.5 in. (52.07 cm.)
Case Qty. 40
Connectors
USB Type A Plug
Package Dimensions
Depth 1.7 in. (4.3 cm)
Height 4.9 in. (12.5 cm)
Width 6.3 in. (15.9 cm)
Housing
Case Plastic
Weight
Case Wt. 19.5 lb. (8.9 kg)
Package Wt. 0.4 lb. (0.2 kg)
Dimensions
Width 2.5 in. (6.4 cm)
Length 2.0 in. (5.1 cm)
Height 0.8 in. (2.1 cm)
Cable Length 6 ft. (1.82 m.)
Power Connections Bus powered
Connectors C-36 Male
Transfer Rate 12Mbps
USB Specification USB 1.1 compliant
Humidity 20-80% RH, (Non Condensing)
Operating System Support Win 98, 98SE, 2000, ME, XP
UPC / EAN Barcode icon
UPC 672792121043
EAN 0672792121043
