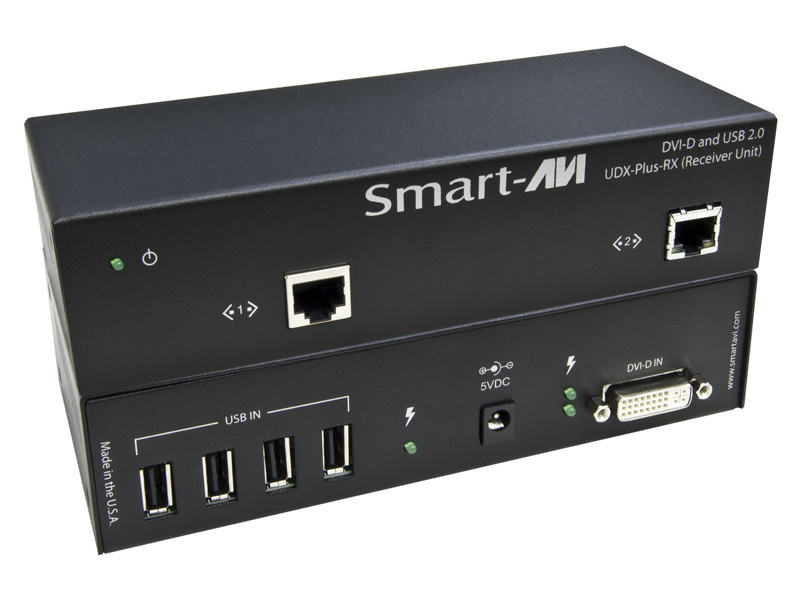

DVI-D, USB 2.0, CAT6 STP Receiver with Reclocking

UDX-PRX

$650.00$506.49
Save $143.51
FREE Shipping on orders over $100
smartavi_madeinusa

The UDX-Plus Receiver is the perfect solution for extending a DVI-D display and USB 2.0 devices to a remote location. It extends DVI-D and USB 2.0 signals to a remote location up to 250 feet away. The UDX-Plus features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning.

Applications

  • Digital Signage
  • Home Networking
  • Remote USB Connections
  • USB Device Sharing
  • Webcam
  • USB Electronics Devices
  • Security Systems
  • KVM Extension

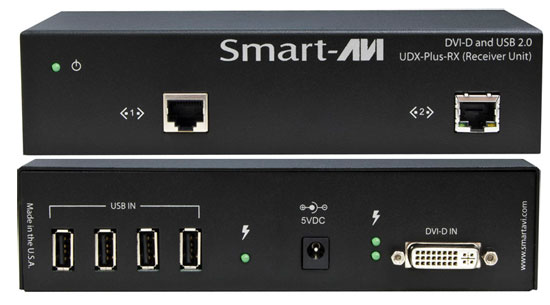

product

Features

  • DDC from internal table for Mac/PC
  • Dedicated switch to learn any DDC
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Supports Mac, PC, and Linux DVI
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 2.0 and 1.0 Devices Transparently
  • (Disk Drives, Flash Drives, Printers, Cameras, Scanners, etc.)
  • Supports 4-port USB 2.0 in remote location
  • Full reclocking for the receiver regenerates digital signal producing top signal quality
  • Extends up to 250ft (275ft with high quality CAT6 STP)

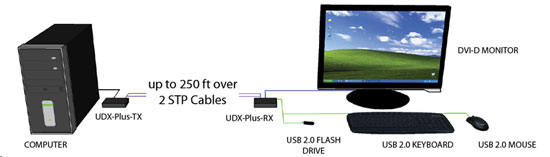

diagram

SmartAVI UDX-Plus Receiver Specifications

Mechanical
Height 1.75 in. (4.44 cm)
Width 7.25 in. (18.41 cm.)
Depth3.37 in. (8.55 cm.)
Video FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)(1) DVI-D 29-pin female
Output Interface (RX)(1) DVI-D 29-pin female
ResolutionUp to 1920x1200 @60Hz
DDC5 volts p-p (TTL)
USB Signal TypeUSB 2.0 480 Mbits/s (60 MB/s)
USB Input Interface (TX)(1) USB Type B (Female)
USB Output Interface (RX) (4) USB Type A (female)
PowerExternal 100-240 VAC/5VDC4A @20W
UPC / EAN Barcode icon
UPC 813280023672
EAN 0813280023672
