NTI UNIMUX USB KVM switch
UNIMUX-USBV-32O
Save $248.53
The NTI UNIMUX USB KVM switch (UNIMUX-USBV-32O) allows a user to control up to 16 USB computers with one USB keyboard, USB mouse and VGA monitor. The NTI (UNIMUX-USBV-32O) usb kvm switch comes standard with On Screen Display and Rack Mount Kit. The dedicated internal microprocessors of the NTI (UNIMUX-USBV-32O) usb kvm switch emulate keyboard & mouse presence to each attached CPU 100% of the time so all computers boot error-free.
Features of the NTI UNIMUX USB KVM switch (UNIMUX-USBV-32O):
- NTI's patented true autoboot USB switching - all attached USB PCs, MACs and SUNs can be booted simultaneously.
- Compatible with USB-enabled PCs.
- Compatible with SUN Blade 100, SUN 1000, SUN Ray, SUN Fire 280R, SUN Fire V20z, and other USB-enabled SUN computers.
- Compatible with MAC G4/G5 and Xserve. Supports MAC soft (keyboard) power-on.
- Crisp & clear 1900x1200 video resolution.
- Fully compliant with USB standards (1.0, 1.1).
- USB MAC and SUN start-up keys are supported.
- SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
- Available with RS232 Control option.
- Supports international keyboard layouts in auto-detection mode.

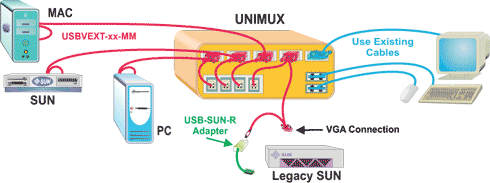

NTI UNIMUX USB KVM switch Diagram
(UNIMUX-USBV-32O)
| NTI UNIMUX USB KVM switch (UNIMUX-USBV-32O) Specifications: | |
| Hosts | |
| Female 15-pin HD and female USB Type B connectors. | |
| Supports SUN Blade 100, SUN Blade 1000, SUN Ray, SUN Fire 280R, and SUN Fire V20z. | |
| Supports PCs with USB-enabled OS (Win 98/2000) and USB ports. | |
| Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports. | |
| Supports MAC G4/G5 and Xserve. | |
| Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R. | |
| Monitor | |
| Crisp & clear 1900x1200 resolution. | |
| Female 15 pin HD connectors. | |
| A multiscan VGA monitor is required to display the different video outputs from different platforms. | |
| Bandwidth is 150 MHz. | |
| Power | |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter for 2-, 16- and 32-port models (included). | |
| 110 or 220 VAC at 50 or 60 Hz via IEC connector for 4 and 8-port models. | |
| Devices | |
| Female USB Type A connectors. | |
| Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse | |
| Keyboard & mouse are hot-pluggable. | |
| Supports two USB devices directly connected. Supports up to eight USB devices using USB hubs (not included). | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
| Regulatory Approvals | |
| CE | |
| Not available on 2-port switches | |
| NTI UNIMUX USB KVM switch (UNIMUX-USBV-32O) Control Methods | |
| Keyboard | |
| Use the keyboard to command the switch box to select ports or configure the SCAN delay. | |
| Front Panel Interface | |
| Touch a button and be connected to a computer, or change modes of operation. | |
| LEDs indicate currently selected port and mode of operation. | |
| On Screen Display (OSD) | |
| Select computers by name with the On Screen Display (OSD) option. Not available on 2-port switch. | |
| Use keyboard or mouse to operate the switch from menus superimposed onto the monitor. | |
| Shows names of computers on cascaded switches up to 152 ports. | |
| Names can be up to 12 characters long. | |
| Power status of each computer is displayed. | |
| Helps screens assists users with the OSD. | |
| Modify the size and position of the OSD. | |
| OSD is built into the switch-no need to install additional hardware or software. | |
| OS and software-independent. | |
| Security | |
| Advanced security included with OSD option. | |
| Each user password can be up to 13 characters long, and each switch can store up to 63 users. | |
| Administrator can enable or disable all security features and select which computers each user can access. | |
| Once security is enabled, an user or administrator must login in order to access any of the computers connected to the switch. | |
