4-Port USB 2.0 Extender Over Cat5e/6 up to 150 ft

USB2-Mini-S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100

SmartAVI's USB2-Mini extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single Cat5e/6 cable. The USB2-Mini supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2-Mini.

SmartAVI USB2-Mini-S Features:

  • Supports all USB 2.0 and 1.1 Devices Transparently (Flash Drives, Printers, Scanners, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Works on Windows, Mac and Linux Operating Systems
  • Integrated Four-Port Hub
  • Bus-Powered Local Unit
  • Power Adaptor for Remote Unit
  • Plug-and-Play

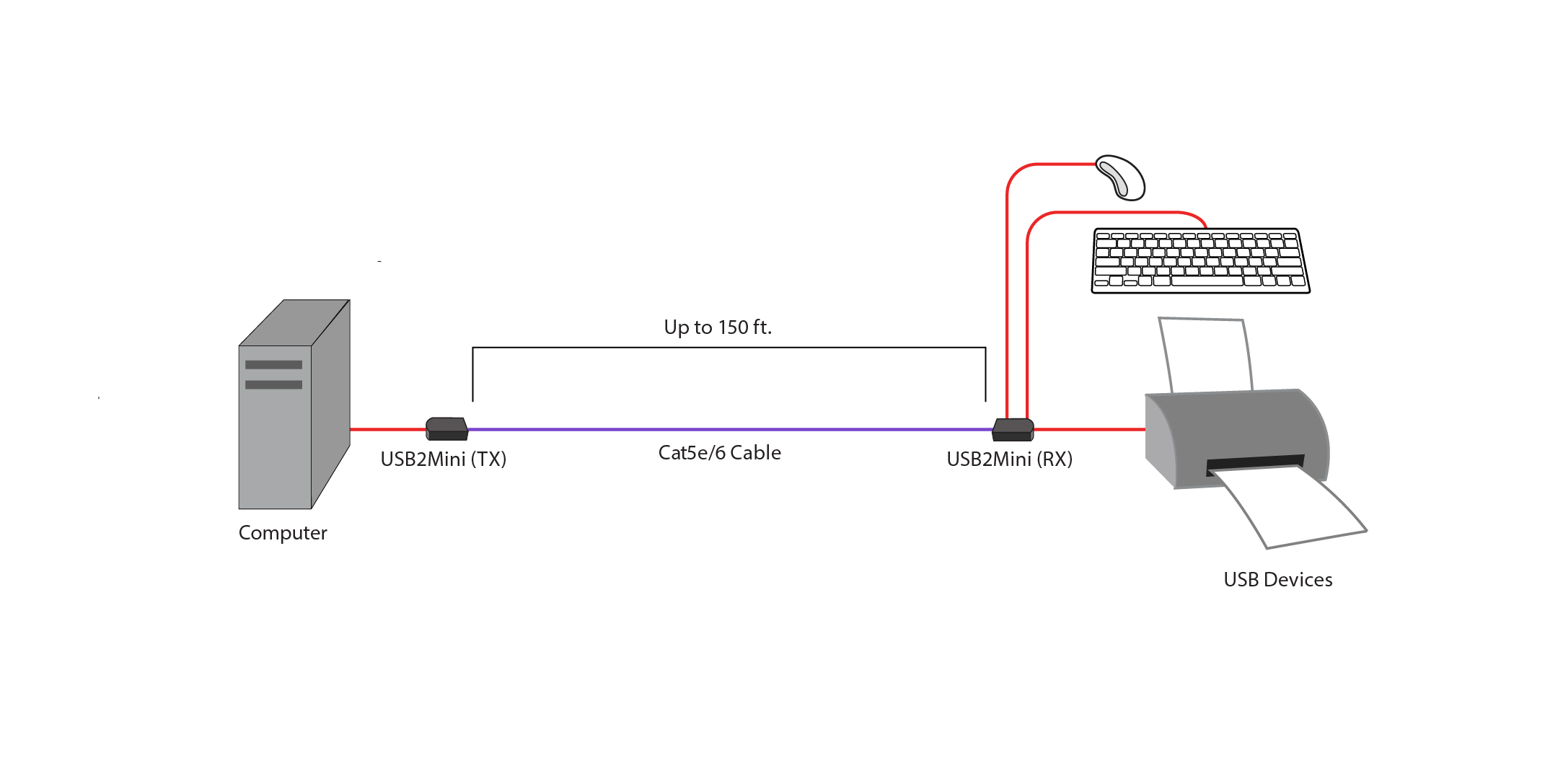

SmartAVI USB2-Mini-S Application Diagram

SmartAVI USB2-Mini-S Specifications:

Mechanical
Width 3.375 in.
Height 1.5 in.
Depth 3.375 in.
Weight 0.14 lbs.
Range Range over Cat5/6 150 ft.
Operating Temperature Range 0-55C (32-131F)
Power External or via USB - 5V DC @ 2mA
UPC / EAN Barcode icon
UPC 813280020022
EAN 0813280020022
