USB 2.0/1.1 CAT5 Extender Kit (150ft)

USB2NANO-S

$149.00$116.10
Save $32.90
FREE Shipping on orders over $100
smartavi_madeinusa

SmartAVI's USB2Nano extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single CAT5 cable. The USB2Nano supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2Nano.

Features

  • Supports all USB 2.0 and1.1 Devices Transparently (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Works on Windows, Mac and Linux Operating Systems
  • Bus-Powered Local Unit
  • Power Adapter for Remote Unit
  • Extends USB device connectivity up to 150 feet
  • Supports suspend/resume detection
  • Supports Hot Plug functionality
  • Low cost compared to hub-based extension or other USB extenders
  • No software driver required
  • Plug-and-Play Ready

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio
  • PC KVM Extension
  • MAC Keyboard Mouse Extender

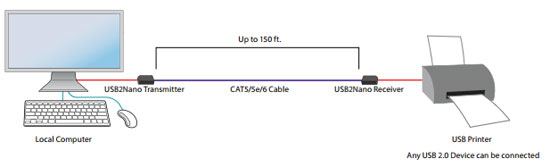

diagram

SmartAVI USB2Nano Specifications

Local Upstream PortUSB Type A Male
Local Downstream PortRJ45 Jack
Local PowerBus-powered
Remote Upstream PortUSB Type A Female
Remote Downstream PortRJ45 Jack
Remote Power5VDC-2A
Built In Cable Length1 foot
Interconnect CableStandard CAT5/5e/6 Cable
Max Cable Length150 ft
UPC / EAN Barcode icon
UPC 813280023733
EAN 0813280023733
Question: Hi, will that work at high speed rate with usb XMOS audio DAC as host? Is receiver controlling usb data packs integrity? Client debian PC will work without drivers?
Answer: Thank you for your inquiry,

According to the vendor, the USBNano-S has a standard USB 2.0 interface that supports 480 Mbit/s and is dubbed "high speed". There are no drivers necessary for the SmartAVI USBNano-S - it's essentially a transparent cable, so any device that would normally work over USB should work.

When it comes to USB data packet integrity, this would be via CRC and up to the higher levels in the driver/application to detect data loss and handle it. The USBNano-S itself simply amplifies the USB signal - no signal degradation or data loss should be detectable at up to 150ft assuming standard CatX cables and interference from the environment.

Please let us know if there is anything else we can ever help you with!
