Raritan Cat5 Reach USB KVM Extender

USBED

$545.00

Discontinued
Recommended replacement: Adder X200AS-USB/P-US
Alternative options: Contact Us

The Raritan Cat5 Reach USBED is a Cat5 KVM Extender used to locate a remote user console (PS/2 keyboard, PS/2 mouse, VGA monitor) up to 1,000 feet from a USB computer.

Cat5 Reach allows you to:

  • Operate a PC from wherever you want to be.
  • Keep your PC in a clean, secure environment.
  • Protect the PC, applications and valuable data.
  • Add a local user console, in addition to the remote user console.
  • Control all servers connected to a KVM switch remotely.

Cat5 Reach is easy to install and easy to use. Each Cat5 Reach model is packaged as a kit that includes a transmitter and receiver pair for use with your Enhanced Cat5 UTP cable (sold separately). Just plug a keyboard, video and mouse into the receiver and operate. Automatic Video Tuning (AVT) adjusts video quality automatically, so no manual adjustments are needed.

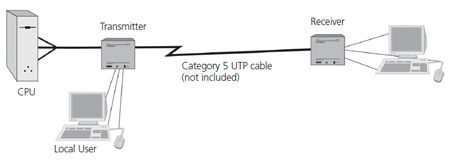

Raritan USBED KVM Extender Application Diagram
Raritan USBED KVM Extender Application Diagram

NOTE: Package includes- AUPUSBC transmitter unit and cable & URKVMG receiver unit.  Use Enhanced Category 5 UTP (350 Mhz) cable (sold separately), with RJ-45 connectors.  Cable must conform to EIA/TIA T568B Category 5 wiring standard.

Raritan USBED Specifications:

MechanicalTransmitterReceiver
Height 1 in. (23 mm.)1 in. (23 mm.)
Width 4.3 in. (108 mm.)4.3 in. (108 mm.)
Depth3.6 in. (91 mm.)3.6 in. (91 mm.)
Weight0.5 lb. (0.2 kg.)0.5 lb. (0.2 kg.)
PowerNo external power required6V DC 1.4 amp output (included)
User Port6 pin keyboard & mouse, HD156 pin keyboard & mouse, HD15
Connections
Connection to PC/SwitchDB25(F)N/A
Connection to SUNN/ADB25(F)
Connection to ReceiverRJ-45 jackN/A
Connection to TransmitterN/ARJ-45 jack
UPC / EAN Barcode icon
UPC 785813358264
EAN 0785813358264
