SmartAVI USB+UXGA+Audio+RS-232 or IR CAT5 Receiver.

UXP-RXS

$250.00$194.81
Save $55.19
FREE Shipping on orders over $100

The SmartAVI UXP-RX is an USB+UXGA+Audio+RS-232 or IR CAT5 Receiver. Includes: [UXP-RX & (PS5VD1A)]. The UXPRO series enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays. Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors. UXPRO can be used in educational presentations to multiple locations, in schools and in other training facilities.

The UXPRO is a high resolution UXGA and stereo audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio signals, IR/RS232 and USB1.1 over unshielded twisted pair (UTP) cabling. With RS232 communication support the UX-PROS allows users to send commands to a single or multiple devices. This allows the user to change the volume or turn on/off the display panel remotely. Remotely accessing your USB device is made convenient in a variety of situations. You can locate users away from hazardous industrial environments where the USB device is located. Locate devices away from areas vulnerable to theft of hardware and data, reduce noise and heat; increase desk and floor space. With UXPRO, you get full RS232 bidirectional communication to your remote screens. This gives you the power to access information such as screen operation logs from your remote locations. You gain valuable insight into when and how the screen is being used, it's effectiveness and how much life is left on your screen. You can also send power commands such as on/off to one or all of the screens in the group. The RS232 feature saves you time and money by better managing and prolonging the life of your digital signage network.

*Note: This product is the UXP-RX (Receiver only).

SmartAVI UXP-RX Features:

  • Supports dual screens.
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Each output reaches up to 275 feet (83.2m).
  • Supports high resolution video up to 1900x1200
  • HDTV compatible (720p, 1080i, 1080p)
  • 300 MHz bandwidth
  • Sends high-resolution WUXGA, stereo audio signals, RS232 or IR from one source to 2 locations.
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format/Polarity Preservation.
  • Extends USB port up to 275ft from computer.
  • Uses one CAT5(UTP) cable for USB transmission.
  • Remotely accessing your USB devices are made convenient in a variety of situations.
  • 4-port USB hub with the RX (receiver) unit.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact metal case enclosure.
  • External power supply.
  • RS-232 communication support to single or multiple displays.
  • IR command to single or multiple displays.
  • USB1.1 device
  • Uses one CAT5(UTP) for each WUXGA/Audio/RS232 and IR signal transmission.
  • Supports USB Keyboard, USB Mouse + additional USB 1.1/1.0 device

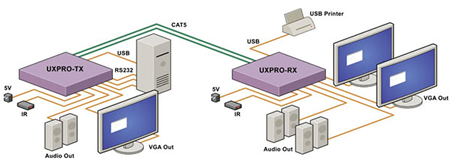

SmartAVI UXP-RX Application Diagram
SmartAVI UXP-RX Application Diagram

SmartAVI UXP-RX Specifications:

Mechanical
Height 0.937 in (24 mm.)
Width 7.75 in. (197 mm.)
Depth 3.38 in. (86 mm.)
Weight 0.60 lb. (0.27 kg.)
Video Data
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution Up to 1900 x 1200 VGA, SVGA, XGA, SXGA
Connector Type HD 15 socket
USB 1.2 Volts (peak to peak) TTL
USB 1.1 low and full speed
Transmitter USB Type B
Receiver 4 USB Type A
Audio
Signal Type Stereo unbalanced
Connector 3.5mm jack socket
RS232 DB9M, TXD, RXD, Gnd, 9600 bps
Power
Connector 2.1 mm DC jack (center +ve)
UPC / EAN Barcode icon
UPC 813280023801
EAN 0813280023801
