  • V2V-C2H-01S - SmartAVI V2V-C2H-01S - Click To Enlarge

Component Video and SPDIF Audio to HDMI Converter

V2V-C2H-01S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100
smartavi_madeinusa

The V2V-C2H-01 Converts Component Video with SPDIF Audio to HDMI.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio

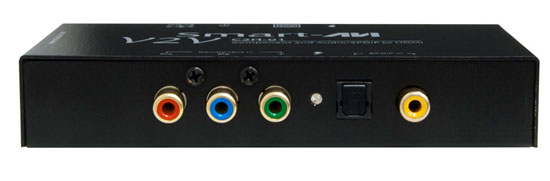

product back

Features

  • One Component YPbPr Signal Input
  • SPDIF Audio Signal Input
  • One HDMI Signal Output
  • HDMI Signal 720p/60HZ Output
  • Adaptive PAL / NTSC standard
  • LED Indicators
  • Easy to install within minutes

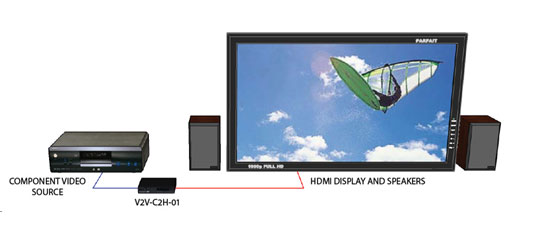

diagram

SmartAVI V2V-C2H-01 Specifications

Mechanical
Height 1  in. (2.54 cm)
Width 5.5 in. (13.97 cm.)
Depth 2.62 in. (6.65 cm.)
Component Video Format(RCA) Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Component Video Resolution480i, 480p, 576i, 576p, 1080i, 1080p (24/25/30Hz)
Audio Signal TypeDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Video FormatHDMI 1.3b [Deep color, xvYcc color space supported]
DVI-ComplianceSingle-link DVI-D 1.1
HDCP Compliance1.0/1.1
Video BandwidthSingle-link 340 MHz [10.2 Gbps]
Connector Type A [19-pin female]
PowerExternal 100-240 VAC/5VDC2A @ 10W
UPC / EAN Barcode icon
UPC 813280023832
EAN 0813280023832
