DVI-D and Audio to HDMI Converter

V2V-D2H-01S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100
smartavi_madeinusa

The V2V-D2H-01 Converts DVI-D Video with S/PDIF Stereo Digital Audio to HDMI.

Applications

  • Home Theater
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio

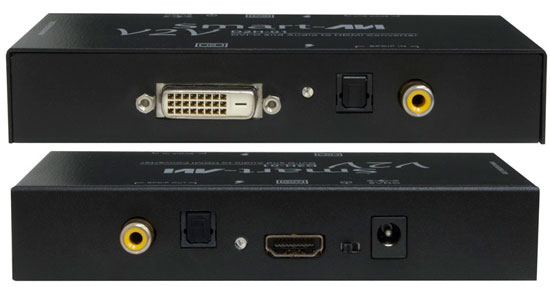

product

Features

  • Converts One DVI+ SPDIF input signal to one HDMI 1.1 signal
  • Supports DVI-D input
  • Supports audio SPDIF input
  • HDMI output : Supports up to 1080p/60HZ, same format as input
  • HDCP 1.1 protocol compliant
  • Supports CEC
  • Audio formats supported : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • LED indication
  • Supports output up to 60 feet over AWG26 cable
  • No loss of quality
  • Installs in minutes

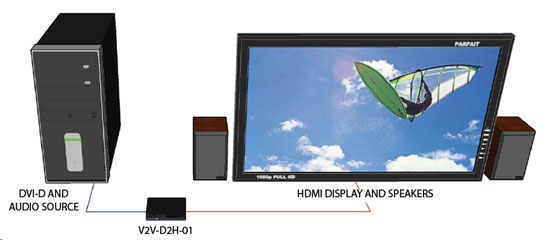

diagram

SmartAVI V2V-D2H Specifications

Mechanical
Height 1.25  in. (3.17 cm)
Width 3.5 in. (8.89 cm.)
Depth 2.75 in. (6.98 cm.)
DVI-D Video FormatDVI-D Single Line
DVI-D Max. Bandwidth5.1 Gbps
DVI-D Input InterfaceDVI-D 29-pin female
DVI-D ResolutionUp to 1920x1200 @60Hz
Audio Signal TypeDTS-HD/Dolby-trueHD/ LPCM7.1/DTS/ Dolby-AC3/DSD
Audio Output Interface(1) SPDIF Optical (1) SPDIF COAX
HDMI FormatHDMI 1.3b
HDMI Video BandwidthSingle-link 340 MHz [10.2 Gbps]
Resolution480i, 480p, 720i, 720p, 1080i, 1080p
HDMI Output Interface (1) HDMI [7.1ch audio & video]
