HDMI to AV Converter- Down-scaler

V2V-HDAVS

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100
smartavi_madeinusa

The V2V-HDAV takes an HDMI input and downscales the signal to a composite video signal, allowing users to bridge the gap between the latest advances in HD signals and the older displays and audio receivers that many systems still rely on and use effectively

Applications

  • Video Conferencing
  • Video Capture
  • Video Walls
  • Education
  • Security Systems
  • Video Modulation
  • Multimedia Presentations
  • Video Installation

Feature

  • Hardware conversion, plug and play without any software driver
  • HDMI1.3 compatible
  • Support NTSC and PAL two standard TV formats
  • One HDMI input, one HDMI output, one AV output, one stereo output
  • HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
  • Compatible with DVI mode 800x600,1024x768,1280x,720,1280x1024,1920x1080/@60hz
  • Supports the HDCP protocol
  • Support for HDMI 1.3
  • CVBS output: 480i, 576i

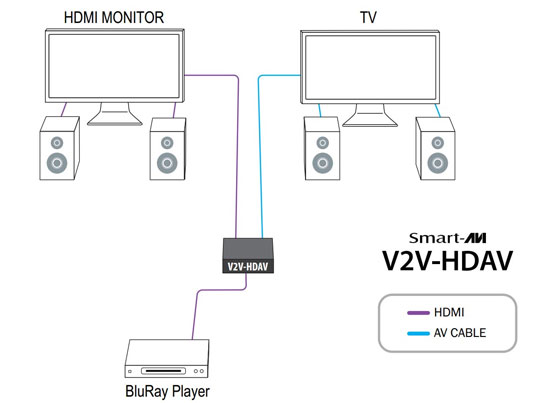

diagram

SmartAVI V2V-HDAV Specifications

Mechanical
Height 1.12 in. (2.84 cm)
Width 4.75 in. (12.06 cm.)
Depth 4 in. (10.16 cm.)
Video Amplifiter Bandwidth3.2G
Input Ports1x HDMI
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Output Ports3xRCA, 1xHDMI
Signal SupportsHDMI Standard, DVI and HDCP compliant
Pixel RatesClock frequency beyond 165 Mpix/second
Input DDC Signal5 volts
Format4:4:4 NS 4:2:2 data input formats
Resolution480,720p,1080i, HDMI formats
