VGA Booster (1280 x 1024@70m)
VB100
Save $16.86

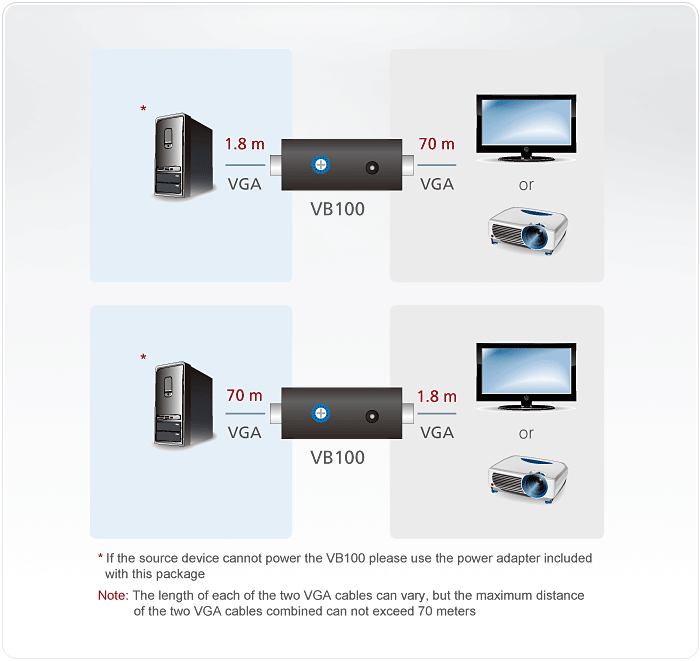

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.
Product Features
- Long distance transmission - up to 70 m
- Adjustable video compensation - manually adjust signal strength to compensate for distance
- Superior video quality - up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Compact housing
- LED indication of power status and source device
- Plug-and-play - no software installation required
Package Includes
- 1x VB100 VGA Booster
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Female |
| Impedance | 75Ω |
| Video Output | |
| Interfaces | 1 x HDB-15 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 300 MHz |
| Max Resolutions/Distance | Up to 1920 x 1200@30m; 1280 x 1024@70m |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5V DC, 0.9W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.13 lb (0.06 kg) |
| Dimensions (L x W x H) | 1.39 x 2.71 x 0.81 in. (3.53 x 6.88 x 2.06 cm) |
UPC 672792004209
EAN 0672792004209
