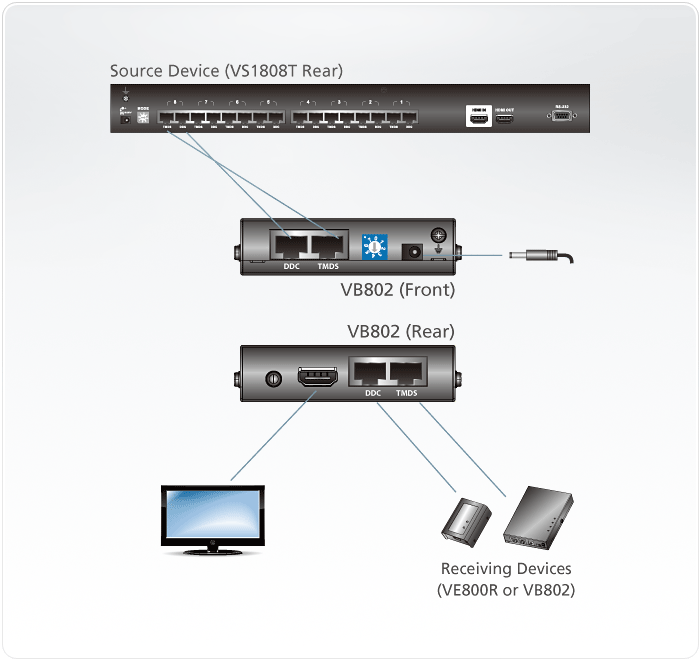

The VB802 HDMI Over Cat 5 Repeater is an HDMI signal extension device which is compatible with ATEN HDMI Over Cat 5 Splitters or Extender. The VB802 extends the transmission range an extra 60m over two Cat 5e cables. The use of an additional repeater means the HDMI signals can be transmitted over even longer distances.
Product Features
- Uses two Cat 5e cables to extend HDMI signal
- Long distance transmission - up to 60 m
- Provides the quickest and most efficient way to move multimedia content from Transmitter to Receiver
- Offers local HDMI output
- HDMI and HDCP compatible
- HDMI (3D)
- Supports Dolby True HD and DTS HD Master Audio
- 8-level EQ adjustment to improve image quality
- Cascadable to five levels
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
Package Includes
- 1x VB802 HDMI Over Cat 5 Repeater
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | N/A |
| Impedance | N/A |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female 2 x RJ-45 Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Bandwidth | 225 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible |
| Max Resolutions/Distance | Up to 1080p@40m; 1080i@60m |
| Audio | |
| Input | N/A |
| Output | 1 x HDMI Type A Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3V DC, 5.3W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.55 lb (0.25 kg) |
| Dimensions (L x W x H) | 4.84 x 3.56 x 0.89 in. (12.30 x 9.04 x 2.26 cm) |
UPC 672792003134
EAN 0672792003134
