SmartAVI VCAT XVGA Video Splitter, Receiver Unit


Save $41.73
FREE Shipping on orders over $100

The SmartAVI VCAT VCT-RX is a XVGA Receiver for the VCAT video splitter system.  The VCAT series is a high resolution VGA distribution system, consisting of a transmitter and receiver unit (sold separately), designed to broadcast desktop video signals over unshielded twisted pair CAT5 cabling on up to 16 video devices such as desktop monitors, and presentation monitors.

Note: A VCT-RX receiver unit is required for each remote display.

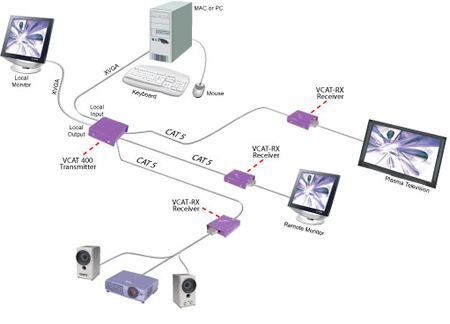

SmartAVI VCAT Video Splitter Application Diagram
SmartAVI VCAT Video Splitter Application Diagram

SmartAVI VCAT Video Splitter System Features:

  • Uses easy to install, inexpensive CAT5
  • Output reaches up to 1,000 feet
  • Supports high resolution clear video up to 1600x1200
  • 300 MHz Bandwidth
  • Sends high-resolution VGA signals from one source to up to 16 monitors
  • Broadcasts up to 256 video output devices through daisy chain capability
  • Each output reaches up to 1000 feet
  • Compatible with VGA, XGA, Sun, MAC and SGI Signals
  • Sync Format / Polarity Preservation
  • High ground loop immunity
  • Built-in lightning, power surge and transient protection
  • Remote Units come with Buffered Outputs
  • Designated trimmer in the remote unit to compensate for cable length
  • Metal Case Enclosure
  • External power supply

SmartAVI VCT-RX Specifications:

Height 0.85 in. (2.16 cm.)
Width 2.81 in. (7.14 cm.)
Depth 3.44 in. (8.74 cm.)
Weight 0.25 lb. (0.11 kg.)
Supply 5VDC
RGB Signal Analogue signal 0.7v positive, 75 Ohm termination
Bandwidth 300MHz @ -3db
Compatible TTL
Horizontal Range 15 to 130 KHz
Vertical Range 30 to 120 KHz
Trimmer Cable compensation for cable length
Output 2x HD15 female
UPC / EAN Barcode icon
UPC 813280020299
EAN 0813280020299
