UXGA/YUV/YC CAT5 Transmitter

VCT-TX100S

$99.00$77.14
Save $21.86
FREE Shipping on orders over $100

The SmartAVI VCAT VCT100 is a XVGA Transmitter .  The VCAT is a high resolution UXGA video extender system designed to broadcast  desktop video signals over unshielded twisted pair cabling (CAT5) up to 1000ft.

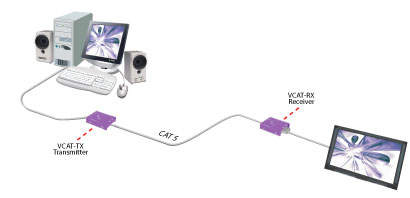

SmartAVI CAT5 Video Extender Application Diagram
SmartAVI CAT5 Video Extender Application Diagram

SmartAVI VCAT Extender Features:

  • Uses easy to install, inexpensive CAT5.
  • Output reaches up to 1000 feet.
  • Supports clear, high resolution video up to 1600 x 1200 feet.
  • 300 MHz Bandwidth.
  • Video cable compensation.
  • Sends high resolution UXGA signals over a single CAT5.
  • Compatible with VGA, XGA, Sun, MAC and SGI signals.
  • Sync Format/Polarity Preservation
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Compact Enclosure.
  • Fully compliant with standard modulated IR and the latest IRDA.
  • Fully transparent path for all protocols and data transfers.

SmartAVI VCT100 Transmitter Specifications:

Mechanical
Height 0.85 in. (2.16 cm.)
Width 2.81 in. (7.14 cm.)
Depth 3.44 in. (8.74 cm.)
Weight 0.25 lb. (0.11 kg.)
Power
Requirements 5VDC
Connector 5 x 2.1mm DC jack
System Cable
Type CAT5 UTP EIA 56A
Connector RJ45
Video
Bandwidth 300MHz
Analog signal level 1 Volt
Impedance 75 ohms
Connector High density HD15
Format VGA/SVGA/XGA/UXGA/
RGBHV/RGsB
Sync TTL horizontal SyncRange: 15 to 130 KHz Vertical Sync Range: 30 to 120 Hz
UPC / EAN Barcode icon
UPC 813280020305
EAN 0813280020305
