VGA Cat 5 Receiver (1280 x 1024@150m)

VE150AR

The VE150AR video receiver connects to a VE150AT to extend signals up to 150m from the source using a Cat 5e cable. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Product Features

  • Long distance transmission - up to 150 m
  • Adjustable gain control - manually adjust signal strength to compensate for distance
  • Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Rack Mountable
  • Plug-and-play - no software installation required

Package Includes

  • 1x VE150AR Video Receiver
  • 1x Power Adapter
  • 1x VGA Cable
  • 1x Mounting Kit
  • 1x User Instruction

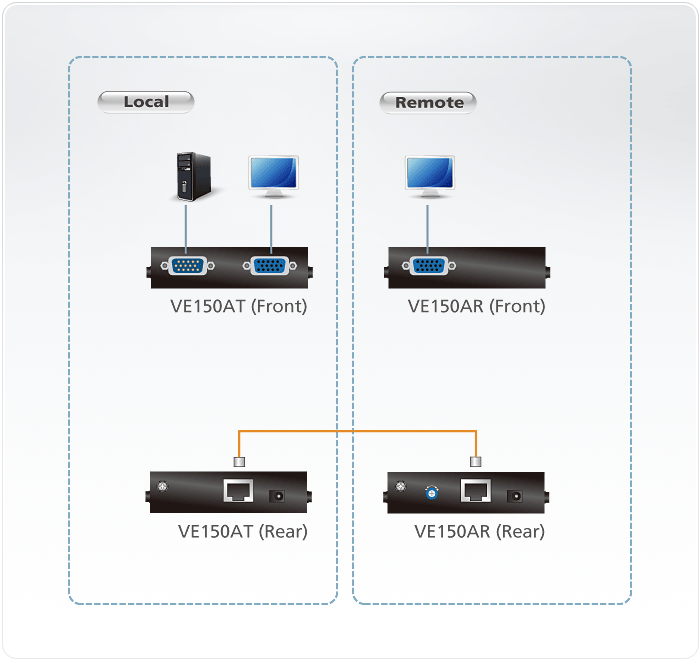

Product Use Diagram

Product Specifications

Video Input
InterfacesN/A
ImpedanceN/A
Video Output
Interfaces1 x HDB-15 Female
Impedance75Ω
Video
Max Bandwidth300 MHz
Max Resolutions/DistanceUp to 1920 x 1200@30m; 1280 x 1024@150m
Power
Connectors1 x DC Jack
Consumption5.3V DC, 1.2W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.53 lb (0.24 kg)
Dimensions (L x W x H)5.03 x 3.56 x 0.89 in. (12.77 x 9.04 x 2.26 cm)
