HDMI Cat 5 Extender (1080p@40m)

VE800A

$118.00$87.56
Save $30.44
FREE Shipping on orders over $100

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Product Features

  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality - 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible

Package Includes

  • 1x VE800AT HDMI Extender
  • 1x VE800AR HDMI Extender
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions

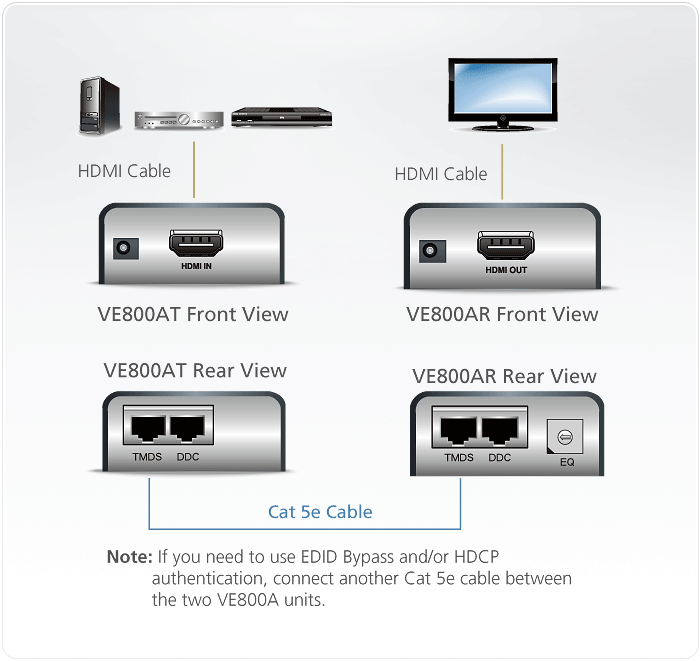

Product Use Diagram

Product Specifications

Video Input
InterfacesVE800R: N/A
VE800T: 1 x HDMI Type A Female
ImpedanceVE800R: N/A
VE800T: 100Ω
Video Output
InterfacesVE800R: 1 x HDMI Type A Female
VE800T: N/A
ImpedanceVE800R: 100Ω
VE800T: N/A
Video
Max Data RateVE800R: 6.75 Gbps (2.25 Gbps Per Lane)
VE800T: 6.75 Gbps (2.25 Gbps Per Lane)
Max Pixel ClockVE800R: 225 MHz
VE800T: 225 MHz
ComplianceVE800R:HDMI (3D, Deep Color); HDCP Compatible
VE800T: HDMI (3D, Deep Color); HDCP Compatible
Max Resolutions/DistanceUp to 1080p@40m; 1080i@60m
Audio
InputVE800R: N/A
VE800T: 1 x HDMI Type A Female
OutputVE800R: 1 x HDMI Type A Female
VE800T: N/A
Power
ConnectorsVE800R: 1 x DC Jack
VE800T: 1 x DC Jack
ConsumptionVE800R: 5V DC, 0.75W
VE800T: 5V DC, 1W
Environmental
Operating TemperatureVE800R: 32°-104°F (0°-40°C)
VE800T: 32°-104°F (0°-40°C)
Storage TemperatureVE800R: -4°-140°F (-20°-60°C)
VE800T: -4°-140°F (-20°-60°C)
HumidityVE800R: 0-80% RH, Non-Condensing
VE800T: 0-80% RH, Non-Condensing
Physical Properties
HousingVE800R: Metal
VE800T: Metal
WeightVE800R: 0.35 lb (0.16 kg)
VE800T: 0.35 lb (0.16 kg)
Dimensions (L x W x H)VE800R: 3.54 x 2.17 x 0.87 in. (9.00 x 5.50 x 2.20 cm)
VE800T: 3.54 x 2.17 x 0.87 in. (9.00 x 5.50 x 2.20 cm)
