9 x 9 HDMI HDBaseT-Lite Matrix Switch

VM3909H

$6,000.00$5,709.88
Save $290.12

Discontinued
For upgrade or replacement options: Contact Us

With the rapid development of HDBaseT technology, ATEN has released the new VM3909H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.

When the VM3909H is combined with VE805R receivers, it supports both ATEN Seamless Switch technology and Video Wall functionality. ATEN's exclusive Seamless Switch technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.

The VM3909H offers flexibility with reliable signal distribution controlled via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections. It's designed as a functional and integrated control system built for residential, commercial and conference center settings.

Product Features

  • Supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs
  • The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
  • HDBaseT Connectivity - connects HDMI displays over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission
  • Power over HDBaseT (POH) - supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable ** / ***
  • Seamless Switchª Technology - ATEN FPGA engine unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions**
  • Video Wall - allows you to create custom video wall layouts via intuitive web GUI**
  • EDID Expertª - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Multiple Control Methods - system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
  • Bi-directional IR channel ports support full frequency IR signals from 30 KHz to 60 KHz
  • Supports ATEN's LockProª HDMI cable lock for securing HDMI cables to the device
  • Firmware Upgradeable
  • Rack Mountable (VM3909H: 2U Design)

Compatible Receivers

ModelMax DistanceIR4KSeamless SwitchVideo WallPOH
VE801R70mN/AYesN/AN/AN/A
VE802R70mYesYesN/AN/AYes
VE805R (w/ Scaler)70mYesN/AYesYesN/A
VE812R70mN/AYesN/AN/AN/A
VE814R70mN/AYesN/AN/AN/A
VE601R70mN/AN/AN/AN/AN/A

Package Includes

  • 1x VM3909H HDMI HDBaseT-Lite Matrix Switch
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions

* The HDMI outputs can't support the Video Wall and Seamless Switch functions.
** The Seamless Switch, Video Wall and POH features are only available when used a compatible receiver.
*** The VM3909H can provide up to 15.4 W @ 48 VDC of power per port and 75W of total power ; please ensure that the power consumption of the devices connected to the VM3909H does not exceed this limit.

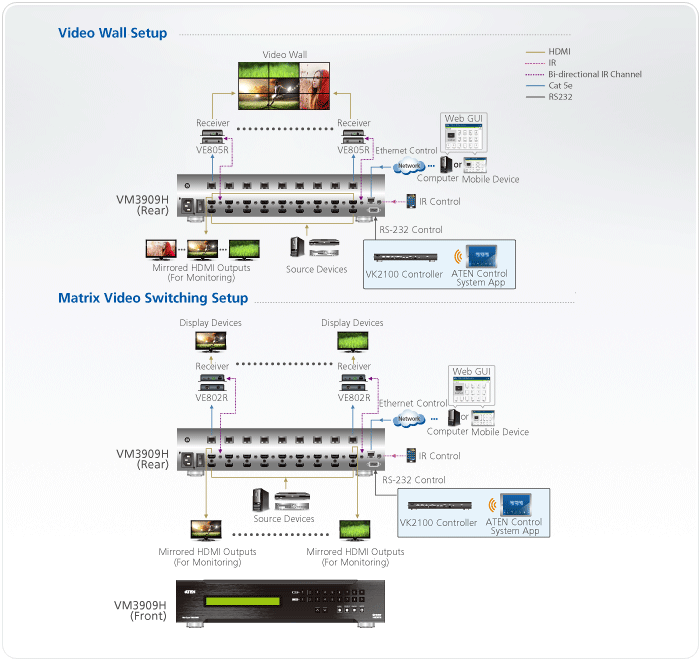

Product Use Diagram

Product Specifications

Video Input
Interfaces9 x HDMI Type A Female
Impedance100Ω
Max Distance1.8 m
Video Output
Interfaces9 x HDMI Type A Female
9 x RJ-45 Female
Impedance100Ω
Max DistanceHDMI: up to 15 m
HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a)
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized
Video
Max Data Rate10.2 Gbps (3.4 per lane)
Max Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible
Consumer Electronic Control (CEC)
HDBaseT Compatible
Max ResolutionsUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
DistanceUp to 70m
Power
Connectors1 x 3-Prong AC Socket
Consumption110V AC, 77.44W; 220V AC, 75.24W (w/o POE)
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
Environmental
Operating TemperatureVE829R: 32°-122°F (0°-40°C)
VE829T: 32°-104°F (0°-40°C)
Storage TemperatureVE829R: -4°-140°F (-20°-60°C)
VE829T: -4°-140°F (-20°-60°C)
HumidityVE829R: 0-80% RH, Non-Condensing
VE829T: 0-80% RH, Non-Condensing
Physical
HousingMetal
Weight16.15 lb (7.33 kg)
Dimensions L x W x H17.02 x 15.05 x 3.46 in. (43.24 x 38.23 x 8.80 cm)
UPC / EAN Barcode icon
UPC 672792006654
EAN 0672792006654
