Control USB KVM on 16 computers with high-resolution WUXGA video and OSD up to 130 feet away over Cat5

VNETX+16PS

$899.00$700.52
Save $198.48
FREE Shipping on orders over $100

Control USB KVM (Keyboard, Video and Mouse) on 16 computers with high-resolution WUXGA video and OSD up to 130 feet away over Cat5

For the wide variety of venues where smooth and user-friendly KVM (Keyboard, Video and Mouse) control are essential, the VNETX-16P KVM switch by SmartAVI provides top-quality KVM functionality with 130 feet of signal extension. Many KVM devices use multiple cables and ports for each connected computer, but the VNETX-16P enables the use of combination KVM cables over Cat5. These handy cables bundle WUXGA video with USB and PS/2 ports together to eliminate the mess and confusion caused by running multiple cables from each computer connected to a KVM switch. Combined with the 130 feet of signal extension provided by the Cat5 connection, this KVM switch offers incredible flexibility. The device is also compatible with DVI video ports with the use of a DVI dongle, allowing for increased flexibility.

Switching control of the 16 connected computers is easy thanks to a variety of switching options. Users can switch using the front-panel switches on the device, using supported hot key functionality, or using the OSD (On Screen Display). All devices connected to the VNETX-16P are hot pluggable, enabling users to add or remove devices without needing to restart the switch. The switch supports full emulation for a keyboard and mouse via USB 1.0/1.1/2.0 or PS/2 ports with high-performance mouse tracking and synchronization. Secure access through certificate authentication and data encryption is supported. There's no software required to utilize the switch, and there is a mini USB port for firmware updates.

Features:

  • Supports Mac, PC, Linux and Sun
  • Supports high resolution 1920x1200 60Hz WUXGA
  • KVM control of 16 computers, rack mountable
  • Uses combo KVM cable over Cat5 for consolidated connectivity
  • 130 feet of signal extension over Cat5
  • Supports USB 1.0/1.1/2.0 and PS/2 keyboard and mouse with full emulation
  • Front panel tactile switches with LED status indicator
  • Includes OSD (On Screen Display)
  • Supports auto-scan mode for discovery
  • Easy control and access

Aplications:

  • Government Operations
  • Defense Applications
  • Security Control Rooms
  • Corporate Communications
  • Server Operations
  • Medical Campuses
  • Airports
  • Production Studios

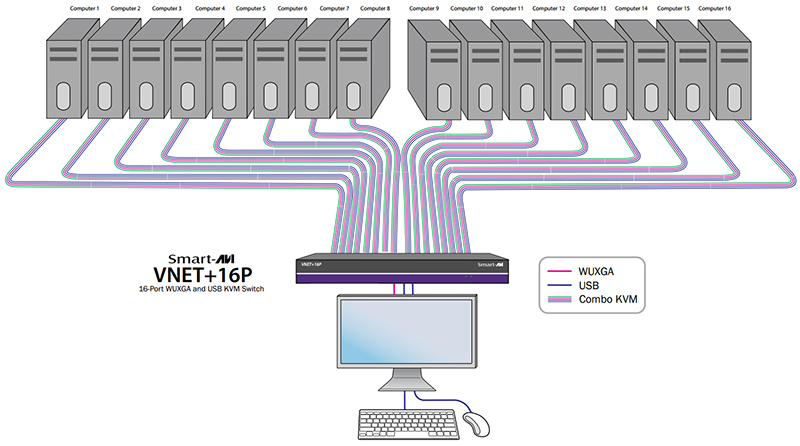

 Diagram

diagram



Specifications:

Video
Format VGA RGB Analog
Resolution HDTV Up to 1600x1200 @85Hz, 2048x1536 @60Hz
Input Interface (16) RJ-45 for Cat5
Output Interface (1) HD-15 Female
H Frequency Range 30-95 kHz
V Frequency Range 50-180 Hz
USB
Signaling USB 1.0/1.1/2.0
Input Interface (16) HD-15 Female VGA/USB
Output Interface (2) USB Type A, (2) PS/2
Firmware Update (1) Mini USB
Control
Front Panel Tact Switches
OSD On Screen Display
Optical
Power External adaptor DC 12V/2A
Dimensions 17.3" W x 1.5" H x 6.1" D
Weight 5 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp 32-131°F (0-55 °C)
Storage Temp -4-185 °F (-20-85 °C)
Extension 130 ft over Cat5
UPC / EAN Barcode icon
UPC 813280023924
EAN 0813280023924
