NTI VOPEX 8-Port S-Video Splitter/Extender via CAT5



For upgrade or replacement options: Contact Us

The NTI VOPEX¨ VOPEX-C5SV-8 S-Video Splitter/Extender simultaneously displays high-resolution video from one computer source to 8 remote locations via Cat5 UTP cable. The VOPEX-C5SV-8 is a real-time system which supports remote s-video devices up to 600 feet from the computer as well as local display.  The VOPEX S-Video Splitter/Extender system has two components: the VOPEX-C5SV-8 S-Video broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX ST-C5SV-R-600 remote unit (sold separately) for each remote monitor. The units are interconnected by CAT5 cable.

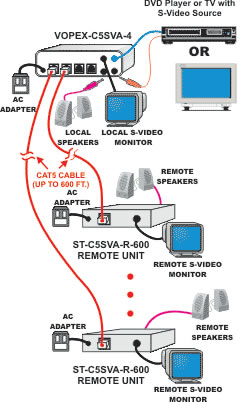

NTI VOPEX S-Video Splitter/Extender System Diagram
NTI VOPEX S-Video Splitter/Extender System Diagram

NTI VOPEX-C5SV-8 Features:

  • Broadcast real-time s-video or audio/s-video to multiple display locations.
  • Accompanying audio can be broadcast to self-powered stereo speakers at the remote unit as well as each remote location.
  • Supports maximum s-video resolution - 800x600 at distances up to 600 feet.
  • Easily expandable. Add remote units as you add monitors
  • Inexpensive CAT5 cable replaces bulky video cables.
  • A pure hardware solution - no software conflicts.

NTI VOPEX-C5SV-8 Details:

  • Video Input
    • Supports computers and video devices with s-video output.
    • Female 4-pin miniDIN connector.
    • Input impedance: 75 Ohms.
    • Maximum input levels for s-video: 1.45 p-p.
    • Video is DC coupled.
  • Video Output
    • Female 4-pin miniDIN connector.
    • Compatible with s-video.
    • 800x600 video resolution.
    • Output impedance: 75 Ohms.
    • Maximum output level for s-video: 1.45Vp-p
  • Cables
    • 3-foot s-video cable included.
    • 3-foot audio cable included with unit with audio option.
    • CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

NTI VOPEX-C5SV-8 Specifications:

Height 2.5 in. (6.3 cm.)
Width 8.5 in. (21.5 cm.)
Depth 6 in. (15 cm.)
Weight 2 lbs. (0.9 kg.)
Operating Temperature 32°F to 100°F (0°C to 38°C)
Storage Temperature -20°F to 140°F (-30°C to 60°C)
Relative Humidity 17 to 90% non-condensing RH
Operating Voltage 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Consumption 10W
MTBF 82,412 hrs
Approved Agency CE
