4-Port 4K 60Hz 4:4:4 HDMI Splitter/Extender with 4 CAT5e/6 Receivers

VOPEX-C64K18GB-4V2

$1,090.00$1,026.00
Save $64.00

NTI VOPEX‑C64K18GB‑4V2 4K HDMI Splitter/Extender via CAT6/6a/7 (New & Improved v2)

The NTI VOPEX‑C64K18GB‑4V2 simultaneously distributes uncompressed Ultra‑HD 4Kx2K 60 Hz 4:4:4 HDMI video, multi‑channel audio, RS‑232, and IR from one video source to up to four displays and speakers, each located up to 394 ft (120 m) away via CAT6/6a/7 cable

  • Transmits an uncompressed HDMI signal over one CATx cable to multiple display locations.
    • Extend Ultra-HD 4Kx2K 60Hz 4:4:4 to 394 ft (120 m).
    • Extend 1080p to 443 ft (135 m).
    • Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/25/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • HDMI features supported:
    • HDMI 2.0
    • YUV 4:4:4
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • HDR10, Dolby Vision, HLG
    • 3D
    • Bandwidth up to 600 Mhz (18 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP 2.2 and 1.4 compliant.
  • Supports the DDC2B protocol.
  • Built-in default EDID table and EDID management.
  • Integrated RS-232 and bidirectional IR control.
  • Supports analog and SPDIF audio de-embedding.
  • Ideal for digital signage, control rooms, classrooms, and command centers.

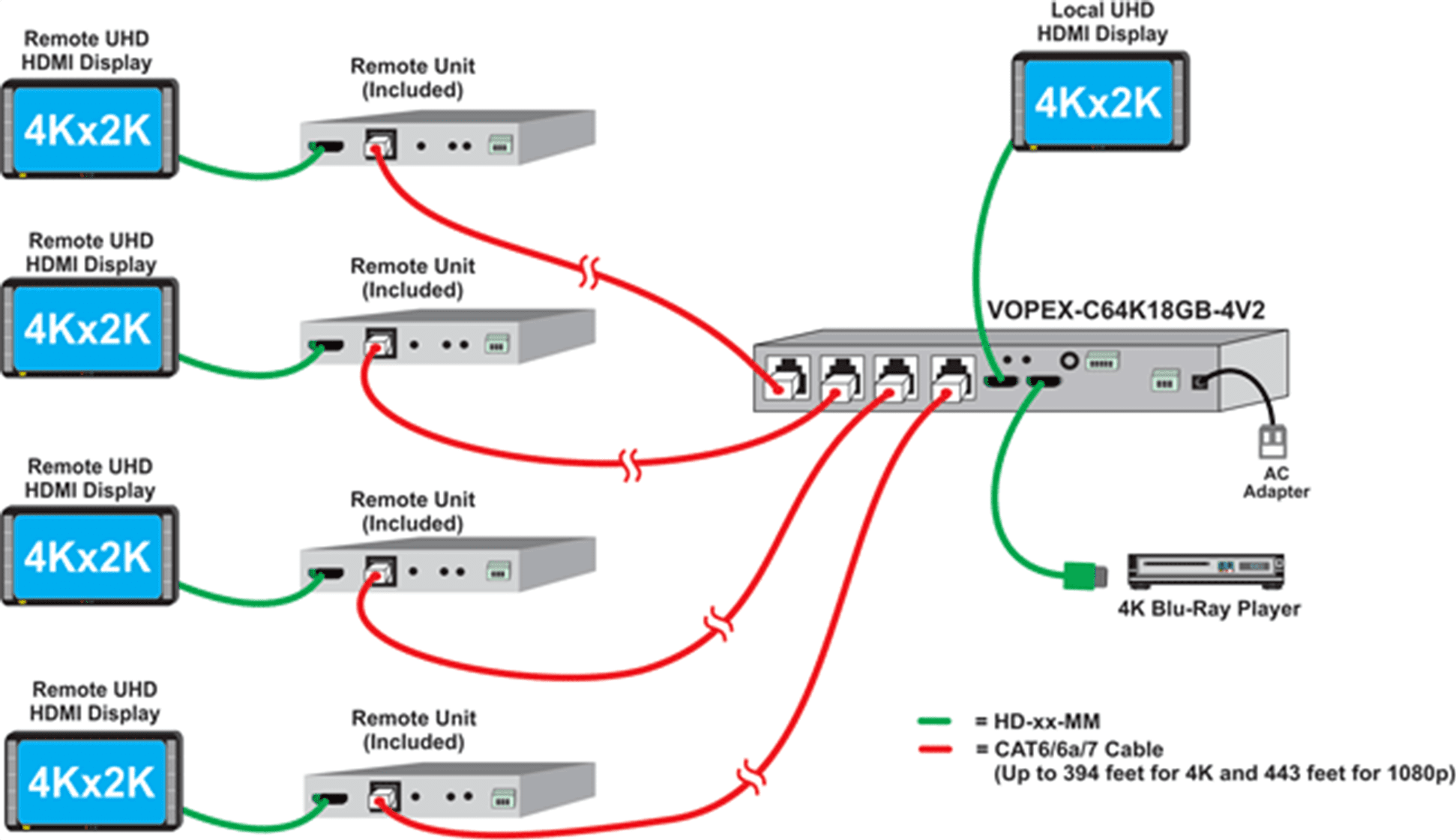

NTI VOPEX-C64K18GB-4V2 Cat5 HDMI Splitter Extender Application Diagram

VOPEX-C64K18GB-4V2 Package Contents

NTI VOPEX-C64K18GB-4V2 Cat5 Receivers Package Contents

  • (1) Local Transmitter
  • (4) Remote Receivers
  • (5) IR Modules (1 Blaster, 4 Receivers)
  • (5) RS-232 Phoenix Connectors
  • (1) SPDIF/Analog Audio Phoenix Connector
  • (1) Mounting Brackets for Transmitter and Receivers
  • (1) 24VDC Power Adapter
  • (1) 2-Year Standard Warranty

VOPEX-C64K18GB-4V2 Resources

NTI VOPEX-C64K18GB-4 Manual NTI VOPEX-C64K18GB-4V2 Brochure (PDF)

NTI VOPEX-C64K18GB-4V2 Specifications

Dimensions (H x W x D)
  • Local unit: 1.73 x 8.66 x 5.35 in (44 x 220 x 136 mm)
  • Remote unit: 0.83 x 5.51 x 2.72 in (21 x 140 x 69 mm)
Local Unit (Transmitter)
  • Compatible with HDMI video sources such as Blu-ray players, media servers, and computers.
  • Supports HDCP 2.2 / 1.4.
  • Video bandwidth: 18 Gbps.
  • One HDMI input, one HDMI loop-out for local display.
  • Supports Ultra-HD 4Kx2K resolutions to 4096x2160 and HDTV resolutions to 1080p.
  • 4Kx2K (4096x2160 and 3840x2160) at 24/25/30/60Hz YUV 4:4:4.
  • Two 3.5mm ports for IR input/output.
  • One 3-pin Phoenix connector for RS-232 control.
  • Audio outputs: SPDIF and analog stereo via Phoenix connector.
  • Four RJ45 HDBaseT outputs for receivers.
  • Zero latency video transmission.
Remote Units (Receivers)
  • Supports Ultra-HD 4Kx2K resolutions to 4096x2160 and HDTV resolutions to 1080p.
  • 4Kx2K (4096x2160 and 3840x2160) at 24/25/30/60Hz YUV 4:4:4.
  • One HDMI output for remote display.
  • Two 3.5mm ports for IR input/output.
  • One 3-pin Phoenix connector for RS-232 pass-through.
  • Analog stereo audio output via Phoenix connector.
  • One RJ45 HDBaseT input port.
  • Zero latency transmission with embedded HDMI audio support.
Max Distance
  • 394 feet (120 meters) for Ultra-HD 4Kx2K 60Hz 4:4:4 over CAT6/6a/7 cable.
  • 443 feet (135 meters) for 1080p or WUXGA over CAT6/6a/7 cable.
Power
  • Local unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Output: 24VDC, 2.7A locking connector.
  • Remote units: powered by local unit via PoC (Power over Cable).
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 158°F (-20°C to 70°C).
  • Relative humidity: 20% to 90% non-condensing.
Regulatory Approval CE, FCC, RoHS
Warranty 2-Years
Cables
  • Use HD-xx-MM cable to connect HDMI source and display.
    • Maximum HDMI cable length:
      • 50 feet for resolutions up to 4K @ 30Hz
      • 25 feet for resolutions up to 4K @ 60Hz
  • Use CAT6/6a/7 solid or stranded straight-through cable with TIA/EIA-568B wiring and standard RJ45 connectors.
  • Cables not included.
CatX Cables
Distances and Resolutions for CAT6/6a/7 Cables
Cable Distance Maximum Resolution
CAT6/6a/7 394 feet
(120 meters)		 4096x2160 and 3840x2160 at 60Hz YUV 4:4:4
CAT6/6a/7 443 feet
(135 meters)		 1080p or 1920x1200 (WUXGA) at 60Hz
