2 Port Component Video & Audio Splitter



For upgrade or replacement options: Contact Us

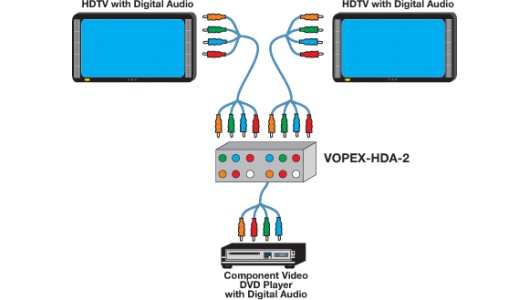

The Component Video / Audio Splitter enables two HDTV displays and speakers to be driven by a single component YPbPr video device with stereo audio or digital audio. Each input and output has component YPbPr video, L/ R analog audio, and digital audio on coax (S/PDIF).

  • Supports High Definition and Standard Definition component YPbPr video, S-Video or composite video.
  • Audio can be Left and Right stereo or digital S/PDIF.
  • Supports S/PDIF, DTS Digital Surround, and Dolby Digital 5.1 digital signals.
  • Supports numerous resolutions: 480i (interlaced), 480p (progressive), 720i, 720p, 1080i, and 1080p formats.
  • All audio/video inputs and outputs have RCA cable connectors.

Product Specifications

RCA connectors.
Signal type: HDTV component YPbPr, S-Video, composite
Maximum input/output levels: 2Vp-p.
Input/output impedance: 75 Ohms
Video crosstalk: <-60dB
Video gain: unity
Bandwidth: >75MHz
Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
Digital Audio
RCA connectors
Signal type: S/PDIF, DTS Digital Surround, Dolby Digital 5.1
Maximum input/output levels: 1Vp-p.
Input/output impedance: 75 Ohms
Stereo Audio
RCA connectors.
Signal type: stereo audio, analog, left/right
Maximum input/output levels: 2.5Vp-p.
Input impedance: 10K Ohms
Output impedance: 50 ohms
Frequency Response: +/-0.03 dB, 20 Hz to 20 kHz.
Total Harmonic Distortion + Noise (THD+N): 0.03% at 1kHz.
Signal-to-Noise Ratio (SNR): >80 dBA
Stereo Channel Separation: <-90 dBA
110 or 220 at 50 or 60 Hz via AC adapter.
WxDxH (in): 5x1.8x1.75
